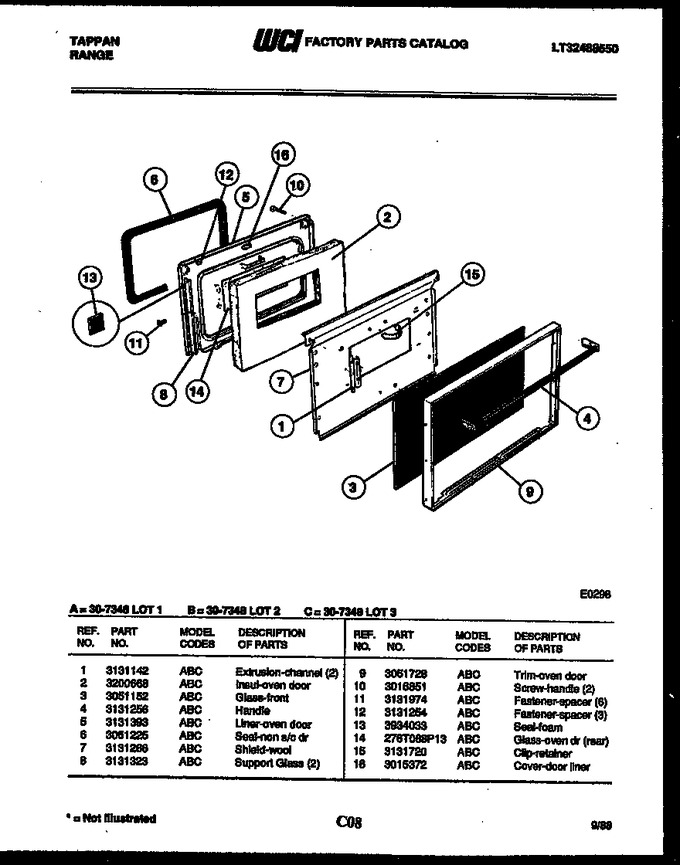

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131142 | Extrusion Channel (2) |
|
- | |||||
| 2 | 3200668 | Insul - Oven Door |
|
- | |||||
| 3 | 3051152 | Glass, Front |
|
- | |||||
| 4 | 3131256 | Handle |
|
- | |||||
| 5 | 3131393 | Liner, Oven Door |
|
- | |||||
| 6 | 3051225 | Seal - Non S/c Dr |
|
- | |||||
| 7 | 3131266 | Shield, Wool |
|
- | |||||
| 8 | 3131323 | Support, Glass (2) |
|
- | |||||
| 9 | 3051728 | Trim, Oven Door |
|
- | |||||
| 10 | 3016851 | Screw, Handle (2) |
|
- | |||||
| 11 | 3131974 | Fastener, Spacer (6) |
|
- | |||||
| 12 | 3131254 | Fastener-spacer (3) |
|
- | |||||
| 13 | 3934033 | Seal, Foam |
|
- | |||||
| 14 | 276T088P13 | Glass-oven Dr Rear |
|
- | |||||
| 15 | 3131720 | Clip, Retainer |
|
- | |||||
| 16 | 3015372 | Cover-door Liner |
|
- |
