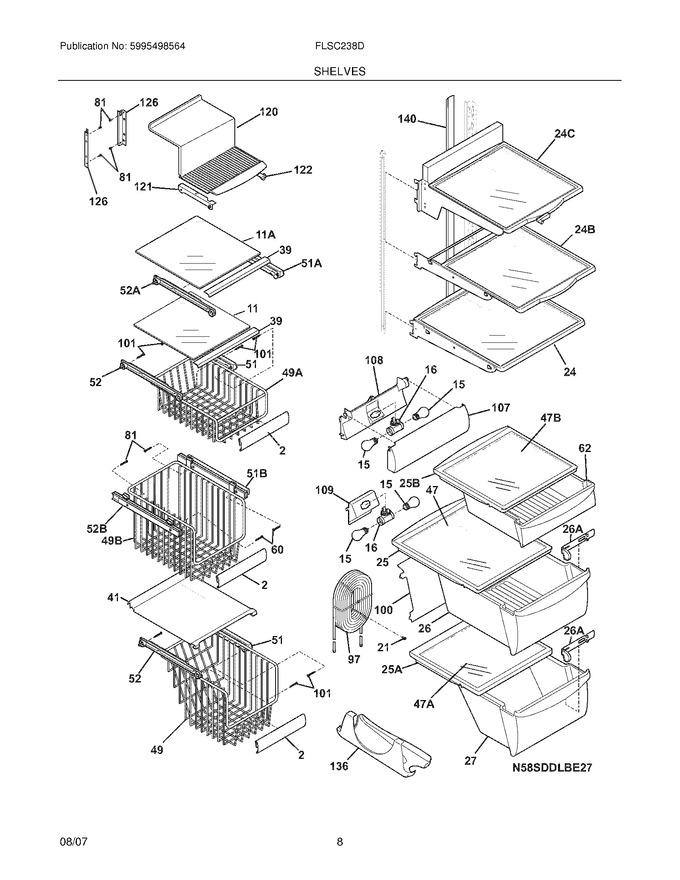

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510605		Trim-basket		Appelez-nous	-
11	241711213		Shelf-freezer,glass ,lower				$ 86.45
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241622802		Socket-light				$ 65.93
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240355239		Shelf-``spill-safe``,fixed				$ 218.56
25	240599301		Cover-crisper Pan,upper			Immediately	$ 94.38
26	240351061		Pan-crisper,upper   (Replaces: 240351005)			Immediately	$ 110.01
27	240351240		Pan-crisper,lower   (Replaces: 240351205)				$ 203.45
39	240367603		Trim-shelf,11.65`` ,front				$ 74.42
41	241637601		Baffle-air				$ 87.05
47	240350649		Insert-pan Cover,glass   (Replaces: 240350602)			Immediately	$ 123.89
49	241515001		Basket-sliding				$ 188.19
51	241514501		Hanger-basket,rh				$ 73.71
52	241514601		Hanger-basket,lh				$ 76.55
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
62	240599706		Pan-meat   (Replaces: 240599701)			Immediately	$ 358.66
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	241532005		Water Tank				$ 150.92
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241513402		Shield-light,meat Pan				$ 59.90
108	241513301		Cover-wiring,crisper Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241691701		Shelf-ice Cream				$ 74.42
121	241504701		Rail-ice Cream Shelf,lh				$ 64.49
122	241504702		Rail-ice Cream Shelf,rh				$ 75.08
126	241674402		Channel,auger Mtg ,rh				$ 43.24
126	241674401		Channel,auger Mtg ,lh				$ 47.48
136	241657701		Dispenser-can,clear   (Replaces: 240424502)				$ 57.41
140	240430505		Channel,wtr Tube Cover				$ 68.38
11A	240443358		Shelf-freezer,glass ,upper   (Replaces: 241711214)				$ 97.07
24B	240350160		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350126)			Immediately	$ 146.36
24C	240350160		Shelf-``spill-safe``,sliding ,``aspect`` ,complete   (Replaces: 240424611)			Immediately	$ 146.36
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)			Immediately	$ 91.99
25B	240599803		Cover-meat Pan   (Replaces: 240599801)			Immediately	$ 90.55
26A	240362201		Control-humidity				$ 69.46
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
47B	240443391		Insert-pan Cover,glass   (Replaces: 240443352)			Immediately	$ 123.62
49A	241528001		Basket-sliding,upper ,half				$ 137.79
49B	241514901		Basket-sliding,upper ,full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass,rh				$ 63.79
51B	240579803		Hanger-basket,rh				$ 85.05
52A	241514801		Hanger-shelf Glass,lh				$ 343.75
52B	240579804		Hanger-basket,lh				$ 92.56
F26A	241595202		Clip-slide,pan-crisper				$ 18.20
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	241513102		Harness-wiring		Appelez-nous	-
NI	241607519		Energy Guide		Appelez-nous	-
