Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10254672 Aerator   (Replaces: 803149) In-Stock Immediately $ 49.54

2 807883 Plug Button Appelez-nous -
3 806171 Caster Appelez-nous -
4 804426 Clamp Appelez-nous -
5 806142 Hose Clamp Appelez-nous -
6 WP285170 Collar Kit   (Replaces: 807499) In-Stock Immediately $ 64.29

7 COMM PART Hose Guard   (Replaces: 808120) Appelez-nous -
8 805859 Hose Guide Appelez-nous -
9 DWD8C Hose Asm   (Replaces: 807496) Appelez-nous -
10 805046 Power Cord Appelez-nous -
11 807498 Relief Kit Appelez-nous -
12 806539 Screw Appelez-nous -
13 806663 Screw Appelez-nous -
14 W11233072 Screw   (Replaces: 803416) In-Stock Immediately $ 12.62

15 807951 Screw Appelez-nous -
16 804518 Screw Appelez-nous -
17 807501 Screw Appelez-nous -
18 800782 Adaptor Appelez-nous -
19 WP910218 U Packing   (Replaces: 806584) In-Stock Immediately $ 9.05

20 806143 Hose Support Appelez-nous -
21 806902 Lh Trim Appelez-nous -
22 806903 Rh Trim Appelez-nous -
23 WD15X93 Inlet Valve   (Replaces: 804982) Special Order $ 64.56

24 807373 Washer Appelez-nous -
25 803393 Washer Appelez-nous -
27 800787 Hose Washer Appelez-nous -
28 808537 Frame Asm Am Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

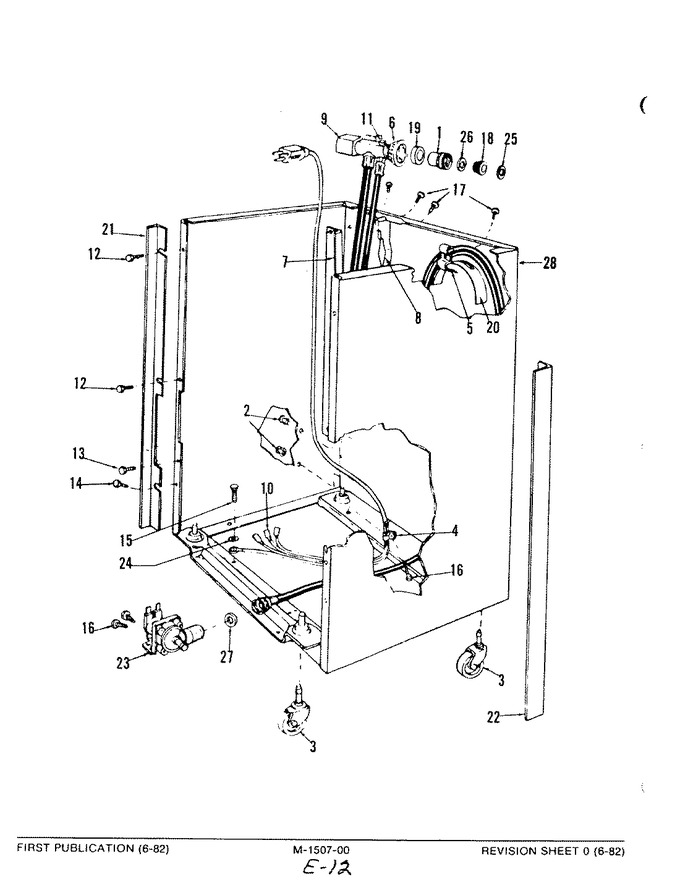

Diagram for DM55A-1
