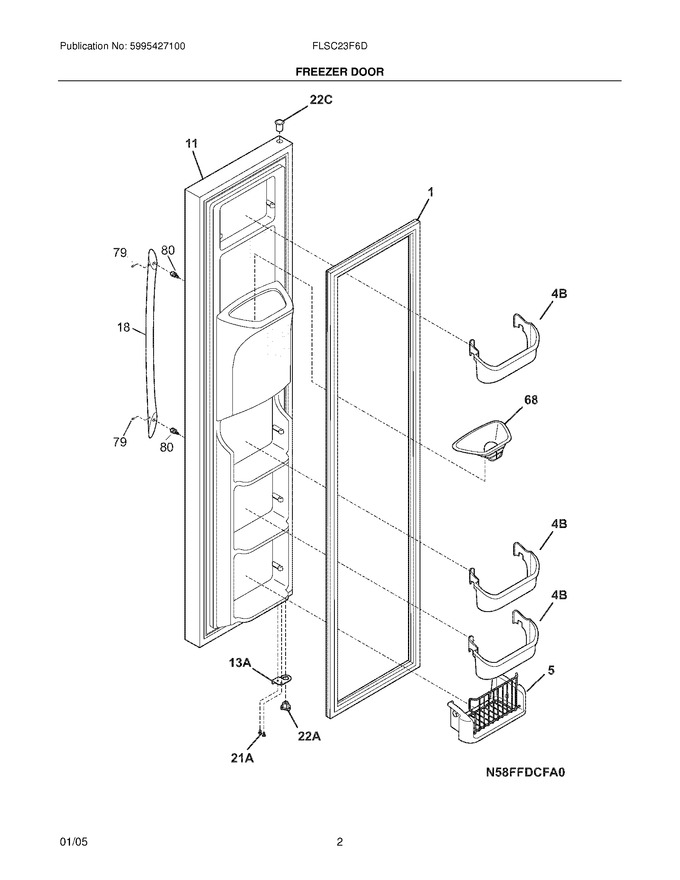

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 241545001 | Bin-tilt Out,tilt-out |
|
$ 213.10 | |||||
| 11 | 241615113 | Door-frzr,stainless ,complete Assy |
|
- | |||||
| 18 | 240536801 | Handle-door,stainless Steel ,with Insert |
|
- | |||||
| 68 | 241525101 | Chute-ice |
|
$ 82.25 | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting (Replaces: 218755503) |
|
Immediately | $ 18.60 | ||||
| 13A | 240581906 | Door Stop,black ,frzr |
|
$ 73.00 | |||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598401) |
|
$ 11.88 | |||||
| 22A | 242000502 | Bearing-hinge(frz),black ,closer (Replaces: 240328204) |
|
$ 7.18 | |||||
| 22C | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 4B | 241511602 | Bin-door |
|
$ 52.72 | |||||
| F1 | 241510208 | Gasket-frzr Door,black ,magnetic (Replaces: 241510204) |
|
Immediately | $ 94.95 | ||||
| NI | 240545201 | Elbow-water Tube (Replaces: 240388601) |
|
$ 73.71 | |||||
| NI | 240552102 | Harness-wiring,door |
|
$ 77.60 | |||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 |
