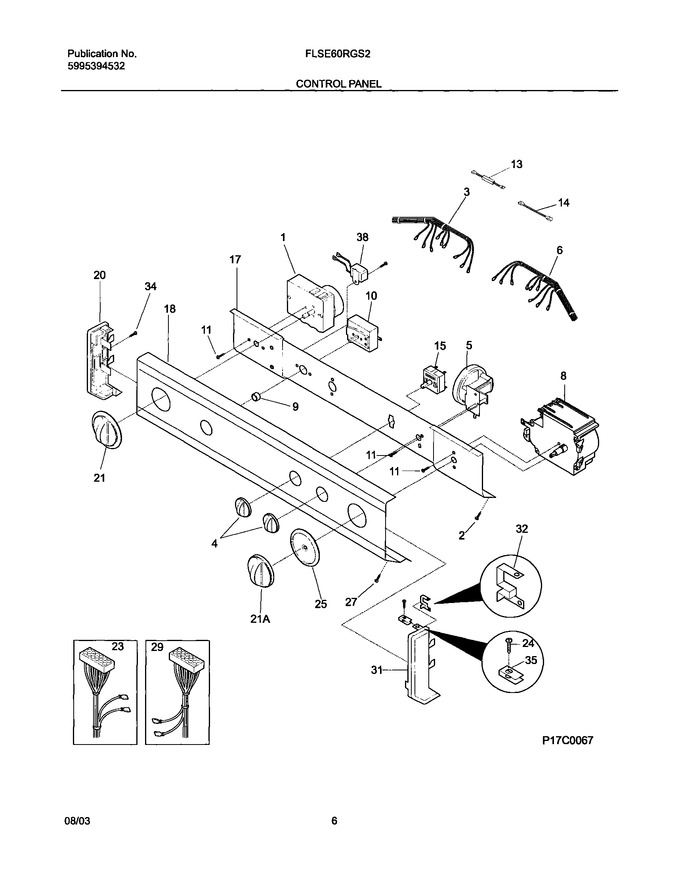

07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	131873401		Knob,rotary ,white				$ 49.73
9	131111501		Button,start Switch ,white ,push Type				$ 13.79
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
13	3205877		Resistor,3 Kilohm				$ 51.14
17	131983410		Bracket-control Mtg		Appelez-nous	-
18	134033500		Panel,trimplate ,console Front		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131873304		Knob,dryer Timer ,white   (Replaces: 131873301)			Immediately	$ 59.54
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976801		Indicator,timer Pointer ,white/blue ,washer				$ 43.16
27	3205253		Screw,pan Head ,6-20b X 0.375		Appelez-nous	-
27	131892100		Screw,6-20b X 0.230		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
21A	131977201		Knob,washer Timer ,white				$ 70.85
F1	131062300		Timer-dryer				$ 243.81
F10	131628900		Switch-push Start				$ 55.80
F14	3205243		Resistor,power ,4.4 Kilohm ,with Terminal		Appelez-nous	-
F15	131620800		Switch,temp Selector ,3 Posn Rotary		Appelez-nous	-
F23	134119400		Wiring Harness,main				$ 280.25
F29	134113400		Wiring Harness,washer ,lower		Appelez-nous	-
F3	131305700		Wiring Harness,dryer Control		Appelez-nous	-
F38	5303286537		Buzzer				$ 93.61
F5	131827400		Switch,pressure ,3 Position		Appelez-nous	-
F6	134122200		Wiring Harness,washer Control ,w/temp Switch		Appelez-nous	-
F8	134063500		Timer,3-off				$ 426.88
NI	5303208586		Screw,terminal Block ,(3)		Appelez-nous	-
NI	5304464772		Strap,plastic   (Replaces: 5303161300)				$ 10.63
NI	134101400		Terminal Block,main   (Replaces: 5303937016)			Immediately	$ 55.99
