01 - Cover
02 - Upper Cabinet/drum/heater
03 - Motor/blower/belt
04 - Control Panel
05 - Lower Cabinet/top
06 - Motor/tub

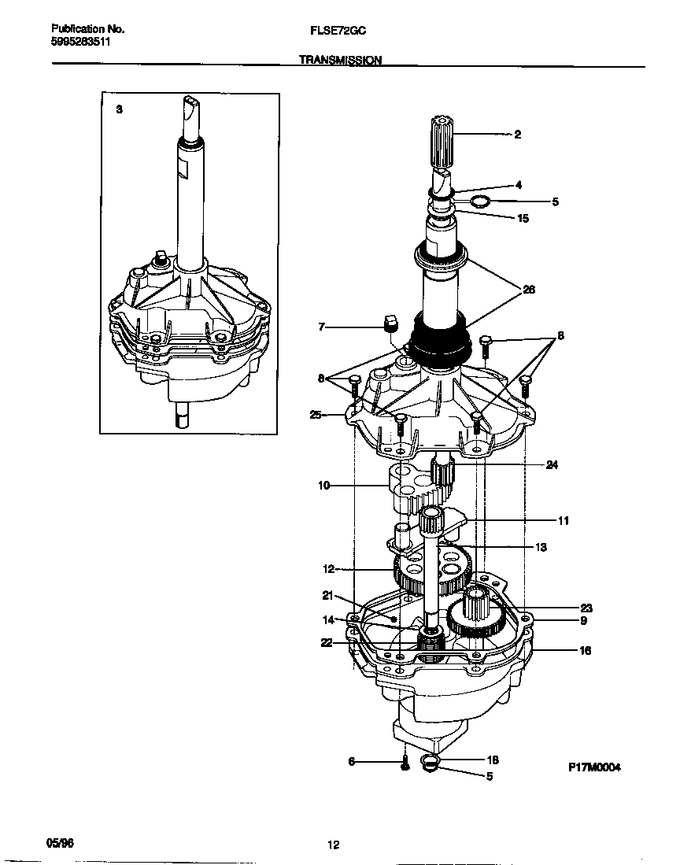

07 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131475100 | Hub-drive |
|
- | |||||
| 3 | 134736400 | Transmission Assy (Replaces: 131586510) |
|
$ 875.74 | |||||
| 4 | 5303161307 | Seal-upper, Lip |
|
Immediately | $ 21.27 | ||||
| 5 | 5303161223 | Ring-retaining |
|
$ 10.24 | |||||
| 6 | 131346600 | Screw |
|
- | |||||
| 7 | 5303161224 | Plug-pipe |
|
- | |||||
| 8 | 5308002804 | Screw-transm. |
|
- | |||||
| 9 | 5308015778 | Gasket |
|
$ 33.18 | |||||
| 10 | 5308011268 | Gear-sector |
|
- | |||||
| 11 | 5303161169 | Rod-connecting |
|
- | |||||
| 12 | 5308015496 | Gear-crank |
|
- | |||||
| 13 | 5308014905 | Shaft-lower |
|
- | |||||
| 14 | 5303161226 | Washer-thrust |
|
- | |||||
| 15 | 5303161232 | Washer |
|
- | |||||
| 16 | 131362000 | Housing-lower |
|
- | |||||
| 18 | 5308002475 | Washer-spacer |
|
- | |||||
| 21 | 3005242 | Oil-transmission (1 Qt) |
|
- | |||||
| 22 | 131417600 | Spring-small L.g.s. |
|
- | |||||
| 23 | 5303161175 | Gear-idler |
|
- | |||||
| 24 | 5308014910 | Shaft-agitator |
|
- | |||||
| 25 | 5303294437 | Housing-upper |
|
- | |||||
| 26 | 5303279394 | Seal-tub |
|
$ 85.72 |
