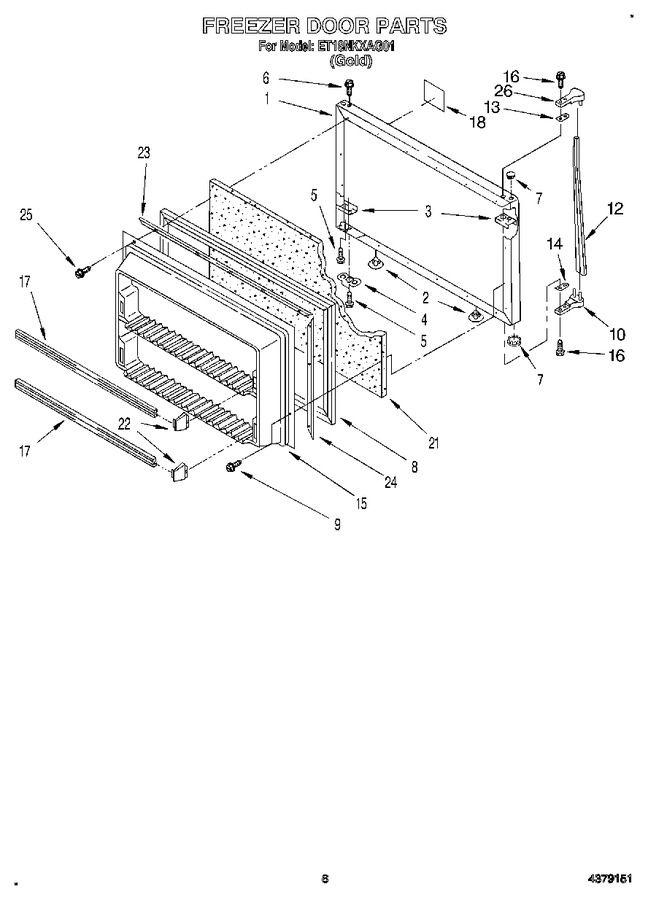

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157710		Panel, Freezer Door (also Order Item 21) (gold)		Appelez-nous	-
2	989879		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.15
7	WP2212648		Hole Plug   (Replaces: 989893)				$ 7.02
8	1116735		Door Gasket Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
10	2148503		Handle End		Appelez-nous	-
12	2163266		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1116610		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 6.74
17	WP2201061		Trim, Door Shelf   (Replaces: 2162611)				$ 106.56
18	2152334		Nameplate				$ 36.13
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	1106862		Endcap, Trim (4)				$ 5.70
23	1115137		Retainer, Gasket Top & Bottom		Appelez-nous	-
24	1115138		Retainer, Gasket Side (2)		Appelez-nous	-
25	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.01
26	WP2191882		Handle End Cap   (Replaces: 943184)				$ 53.80
