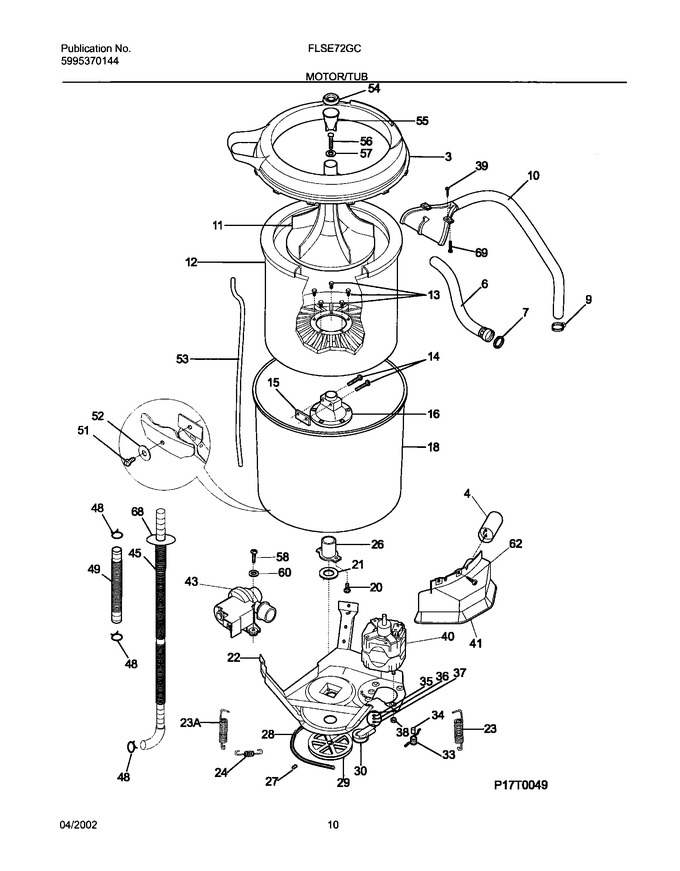

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131551103		Asmy-splash Tub Cover H+   (Replaces: 131551102)				$ 206.72
4	131212301		Capacitor			Immediately	$ 10.63
6	5303912532		Hose-inlet   (Replaces: N6561384)				$ 88.20
7	5303161296		Washer-inlet Hose			Immediately	$ 2,372.96
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	131726300		Hose,nozzle, & Clamp		Appelez-nous	-
11	131427200		Agitator				$ 246.02
12	131221300		Tub-spin		Appelez-nous	-
13	137546400		Screw-trunnion,unc2ax.625 `.312-18 ,(5)   (Replaces: 5303283293)				$ 28.35
14	137539500		Screw-lockplate, Hx, .312-18 X .1.625   (Replaces: 131192800)				$ 20.24
15	137107000		Lockplate   (Replaces: 5308001923)			Immediately	$ 26.94
16	131545101		Trunnion				$ 162.23
18	131557201		Tub-splash, W/air Dome, Brng				$ 294.91
20	3205150		Screw-tub Bearing, Pph B St/z, 8-12 X 0.750				$ 3.55
21	5308002401		Washer, Spin Bearing, Upper			Immediately	$ 16.00
22	131373610		Leg & Dome Assy				$ 313.43
23	134886600		Spring-vertical (short)   (Replaces: 5303208858)			Immediately	$ 37.57
24	131373900		Spring-horizontal				$ 41.30
26	3204405		Bearing-outer Tub			Immediately	$ 97.81
27	5303304825		Screw-set, Hhd Cup Pt, 5/16-18 X .85, Pulley, Transm.		Appelez-nous	-
29	131498301		Pulley-transmission Drive				$ 70.77
30	131862900		Asmy-vaw Idler Arm				$ 28.25
33	3204425		Spring Torsion				$ 45.09
34	3204426		Sleeve-idler				$ 9.35
35	3161433		Ring-retaining				$ 18.79
36	5303261031		Washer-pivot Shaft				$ 12.71
37	5303161306		Washer-spring				$ 12.49
38	5303318708		Nut-motor				$ 5.57
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
41	131513300		Shield-motor		Appelez-nous	-
45	134592700		Hose-drain   (Replaces: 134049200)			Immediately	$ 89.31
48	5304536802		Clamp-pump   (Replaces: 131306234)			Immediately	$ 4.01
51	131659000		Screw-leg, Hwh Typ 23, 5/16-18 X .875		Appelez-nous	-
52	131315800		Washer-leg, Idx.040, 1.25 Odx.335		Appelez-nous	-
53	5304401845		Tube-pressure				$ 58.12
54	131266800		Cap-dispenser				$ 46.67
55	131206100		Cup-dispenser				$ 52.82
56	131468900		Screw-agitator,hwh Shldr `5/16-18x1.250				$ 11.76
57	131339600		Spacer-agitator				$ 18.79
58	131303100		Screw,hwhd Ab ,10-16x.625		Appelez-nous	-
60	131304300		Washer .21 X .71 X .06		Appelez-nous	-
62	131302800		Screw-front Pnl,comb Th Ab ,10-16 X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
68	131707800		Ring-drain Hose				$ 45.25
69	131731500		Fastener-ratchet				$ 17.01
23A	134885900		Spring-vertical   (Replaces: 5303208860)				$ 21.27
F28	134511600		Belt-washer   (Replaces: 131686100)			Immediately	$ 28.41
F40	134159500		Motor/pulley 3/4hp 2sp Emerson   (Replaces: 131902700)				$ 371.81
F43	137221600		Pump-drain-askoll   (Replaces: 134051200)			Immediately	$ 189.21
F49	131494800		Hose-pump To Tub			Immediately	$ 72.30
NI	131462500		Clip-drain Hose				$ 52.66
NI	131506500		Clip-drain Hose				$ 13.76
NI	131663500		Cushion				$ 23.00
NI	131901400		Seal-splash Tub Cover			Immediately	$ 21.69
NI	5303212877		Insert-spring Adj				$ 18.38
