01 - Cover
02 - Upper Cabinet/drum/heater

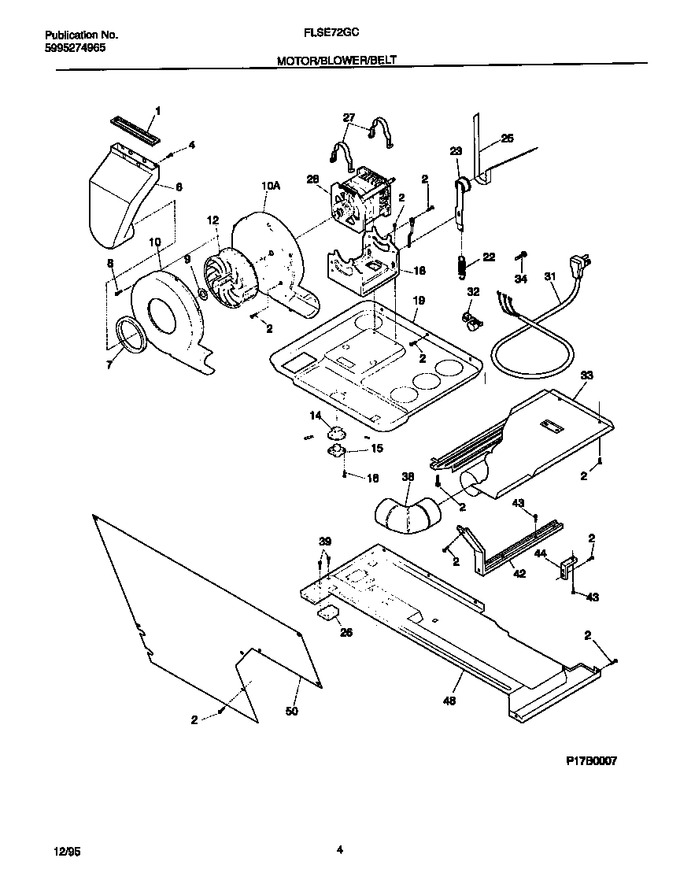

03 - Motor/blower/belt
04 - Control Panel
05 - Lower Cabinet/top
06 - Motor/tub
07 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131295200 | Seal-air Duct |
|
$ 16.30 | |||||
| 2 | 131168200 | Screw, Pph B St/z, 8-18 X .31 |
|
Immediately | $ 14.18 | ||||
| 4 | 131362400 | Fastener |
|
$ 9.41 | |||||
| 6 | 5304521121 | Duct-air, 6 (Replaces: 131417800) |
|
$ 118.56 | |||||
| 7 | 3204490 | Seal-blower Housing |
|
$ 14.18 | |||||
| 8 | 3205245 | Screw-blower Hsg, Pph Ab St/z/ch, 6-18 X .60 |
|
- | |||||
| 9 | 5304488479 | Clamp (Replaces: 5303304824) |
|
Immediately | $ 32.09 | ||||
| 10 | 5303271179 | Housing-blower Rear |
|
- | |||||
| 10 | 131287600 | Housing-blower, Front |
|
- | |||||
| 12 | 131476300 | Wheel-blower |
|
Immediately | $ 47.00 | ||||
| 14 | 5303206879 | Heater-thermostat |
|
- | |||||
| 15 | 3204307 | Thermostat-control |
|
$ 136.79 | |||||
| 16 | 3204308 | Screw-thermostat, Pph Cup Pt, 8-18 X .625 |
|
- | |||||
| 18 | 131367101 | Cradle, Motor |
|
- | |||||
| 19 | 131363901 | Pan-motor Cradle |
|
- | |||||
| 22 | 3205241 | Spring-idler |
|
$ 75.83 | |||||
| 23 | 5304507499 | Arm-idler Assy (Replaces: 131434700) |
|
Immediately | $ 42.66 | ||||
| 25 | 137292700 | Belt-dryer (Replaces: 5303283287) |
|
Immediately | $ 9.34 | ||||
| 26 | 5303212870 | Block-support |
|
- | |||||
| 27 | 5303212834 | Clamp, Motor |
|
$ 3.78 | |||||
| 28 | 5303209662 | Motor-dryer |
|
$ 522.45 | |||||
| 31 | 131396700 | Cord-power |
|
- | |||||
| 32 | 3204317 | Strain Relief |
|
- | |||||
| 33 | 131112001 | Shield-access |
|
- | |||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive |
|
$ 3.36 | |||||
| 38 | 3204320 | Elbow-exhaust |
|
- | |||||
| 39 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 42 | 3204324 | Bracket-marriage |
|
- | |||||
| 43 | 3204325 | Screw-bracket |
|
- | |||||
| 44 | 3204326 | Bracket-external |
|
$ 43.24 | |||||
| 48 | 131379201 | Pan-bottom |
|
- | |||||
| 50 | 3204329 | Cover-safety |
|
$ 40.16 | |||||
| *66121 | 134154100 | Screw-ground Cab, Hex Washer Head, 10-32t X 0.375, Serr (Replaces: 131301100) |
|
$ 13.46 | |||||
| *66122 | 131453000 | Bushing-snap |
|
$ 10.63 |
