01 - Cover


02 - Upper Cabinet/drum/heater


03 - Motor/blower/belt

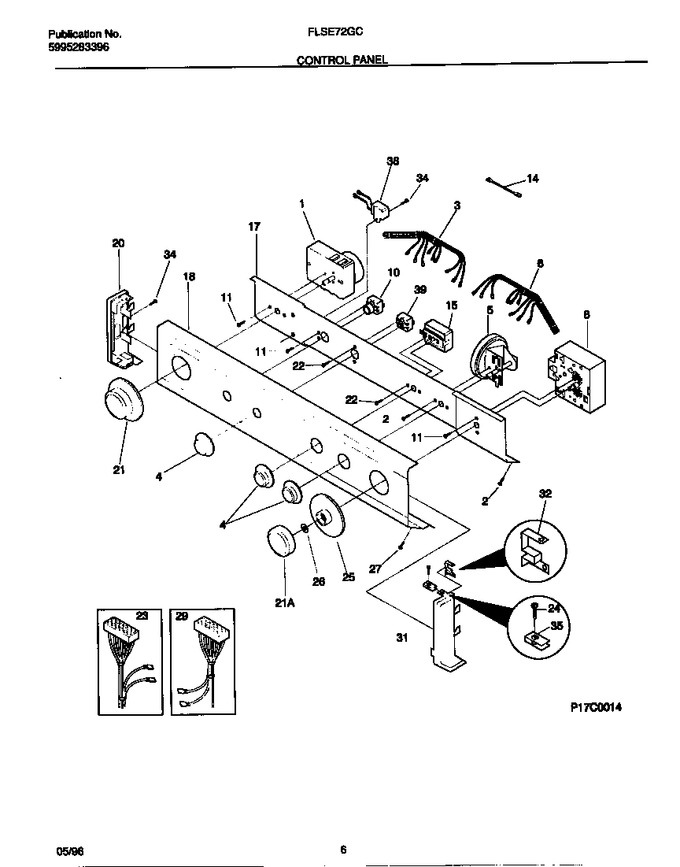

04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer   (Replaces: 131063200)			Immediately	$ 269.37
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
3	131321100		Harness-dryer Control		Appelez-nous	-
4	131168103		Knob-rotary-almond		Appelez-nous	-
5	134493500		Switch-pressure   (Replaces: 131337900)				$ 248.69
6	131446300		Harness-washer Cont		Appelez-nous	-
8	131437500		Timer-washer				$ 403.39
10	5303308029		Switch-start, Almond, Push		Appelez-nous	-
11	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	5308008463		Switch-water Temp				$ 84.39
17	131288002		Bracket-controls		Appelez-nous	-
18	131412100		Panel-control-almond		Appelez-nous	-
20	131288102		End Cap, Almond, Lh		Appelez-nous	-
21	131167803		Knob-timer Dryer, Almond		Appelez-nous	-
21	131167603		Knob-timer Washer, Almond		Appelez-nous	-
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
23	131512600		Harness-dryer		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44   (Replaces: 131209600)			Immediately	$ 14.89
25	131167703		Dial-timer, Almond, Washer		Appelez-nous	-
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131520800		Harness-washer		Appelez-nous	-
31	131288212		End Cap, Almond, Rh		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303210285		Buzzer				$ 65.78
39	5303270950		Switch-dryer Temp		Appelez-nous	-
*56522	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
*56523	5303281103		Tie-harness		Appelez-nous	-
