SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


06 - Water & Ice Dispenser

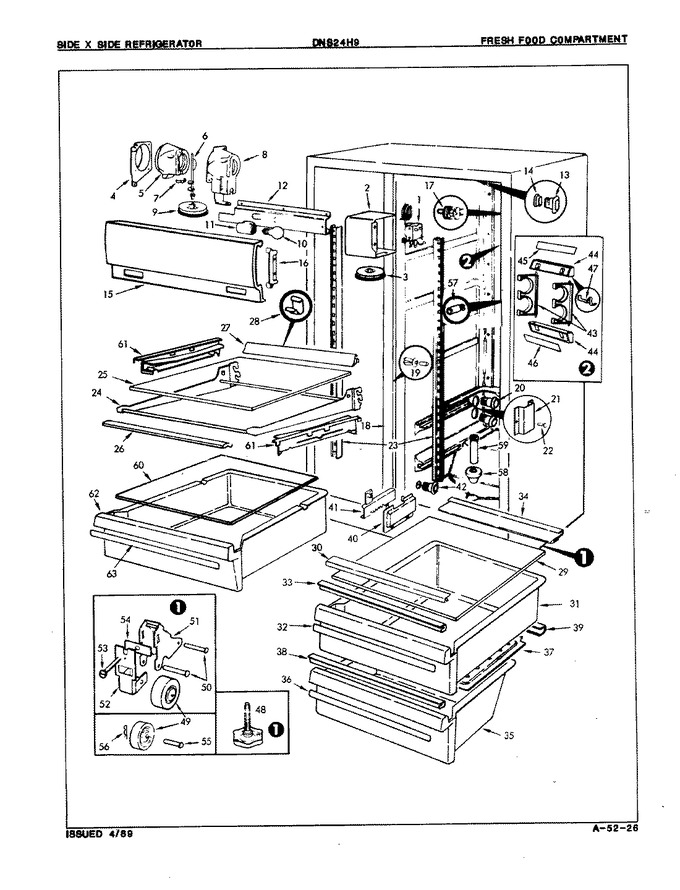

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65268-2		Control, Temperature		Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
2	53682-10		Housing, Temperature Control		Appelez-nous	-
3	29893-5		Knob		Appelez-nous	-
4	53835-2		Orifice, Freezer Control		Appelez-nous	-
5	58767-1		Insulation, Housing		Appelez-nous	-
6	52587-2		Damper		Appelez-nous	-
7	52648-1		Spring, Baffle		Appelez-nous	-
8	58760-2		Housing, Freezer Control		Appelez-nous	-
8	400027-1		Screw		Appelez-nous	-
9	29893-6		Knob		Appelez-nous	-
9	402005-103		Screw		Appelez-nous	-
10	W10887190		Bulb, Light   (Replaces: 55771)			Immediately	$ 16.48
11	29814-2		Receptacle, Light		Appelez-nous	-
12	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
12	59740-2		Housing, Light Socket & Wires		Appelez-nous	-
13	57410-2		Tunnel		Appelez-nous	-
14	57411-1		Retainer		Appelez-nous	-
15	65578-17		Shield, Light		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
16	53686-2		Support		Appelez-nous	-
17	56432-2		Switch		Appelez-nous	-
17	65512-1		Spacer		Appelez-nous	-
18	59026-1-AM		Mullion		Appelez-nous	-
19	53060-4		Clip		Appelez-nous	-
19	59920-9		Stud, (alm)		Appelez-nous	-
20	53726-1		Air Tunnel		Appelez-nous	-
21	62128-1		Air Deflector		Appelez-nous	-
22	28013-2		Rivet, Air Tunnel		Appelez-nous	-
23	58381-4		Rail, Shelf Support		Appelez-nous	-
23	400037-28		Screw		Appelez-nous	-
24	65618-2		Frame, Shelf		Appelez-nous	-
25	66604-14		Shelf, Glass		Appelez-nous	-
26	65614-4		Trim		Appelez-nous	-
27	65276-14		Trim		Appelez-nous	-
28	66333-1		Clip, Shelf Trim		Appelez-nous	-
29	65687-2		Shelf, Crisper		Appelez-nous	-
30	65561-401		Trim, Shelf		Appelez-nous	-
31	66636-2		Pan, Storage		Appelez-nous	-
32	65583-77		Insert		Appelez-nous	-
33	65593-2		Seal		Appelez-nous	-
34	66092-2		Crisper Seal		Appelez-nous	-
35	66636-4		Pan, Storage		Appelez-nous	-
36	65583-77		Insert		Appelez-nous	-
37	65608-4		Cover, Meat Pan		Appelez-nous	-
38	65648-2		Seal, Meat Pan (front)		Appelez-nous	-
39	65649-2		Seal, Meat Pan (rear)		Appelez-nous	-
40	65737-1		Control Housing		Appelez-nous	-
41	65736-1		Slide Control, (meat)		Appelez-nous	-
41	56686-4		Clip		Appelez-nous	-
42	53726-2		Tunnel, Air (meat)		Appelez-nous	-
43	56519-4		Rack, Wine		Appelez-nous	-
43	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
44	65689-1		Support, Wine Rack		Appelez-nous	-
45	65753-3		Insert		Appelez-nous	-
46	65753-17		Insert		Appelez-nous	-
47	58057-1		Spring, Wine Rack		Appelez-nous	-
48	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
49	29834-2		Wheel		Appelez-nous	-
50	64965-1		Pin, Wheel		Appelez-nous	-
51	62794-1		Bracket, Wheel		Appelez-nous	-
52	62795-1		Faceplate Bracket		Appelez-nous	-
53	56487-1		Screw, Wheel Adjustment		Appelez-nous	-
54	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
54	59101-1		Tapping Plate, Wheel		Appelez-nous	-
55	62580-1		Pivot Pin, Wheel (rear)		Appelez-nous	-
56	57418-1		Clip,food Liner Mount.(slides)		Appelez-nous	-
56	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
56	56438-1		Clip, Food Liner Mount.top&bot		Appelez-nous	-
56	66157-1		Wire Harness		Appelez-nous	-
57	19530-2		Nylon Nut		Appelez-nous	-
58	55512-1		Grommet		Appelez-nous	-
59	55513-1		Tube		Appelez-nous	-
60	66604-16		Shelf, Glass		Appelez-nous	-
61	66812-1		Slide Rail		Appelez-nous	-
62	66636-30		Tray		Appelez-nous	-
63	65583-77		Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
