Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131707 Pnl, Manifold Appelez-nous -
2 3202878 Knob Thermo. Appelez-nous -
3 3131581 Knob Top Vlve (4) Appelez-nous -
4 3934005 Pnl Main Top-weat Appelez-nous -
5 618T038P05 Rod-main Top Supt (2) Appelez-nous -
6 3131286 Brkt-main Top Hnge Lh Appelez-nous -
7 3131287 Brkt Main Top Hnge Rh Appelez-nous -
8 3131115 Pan, Burner (4) Appelez-nous -
9 283T013W01-18 Grate (4) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

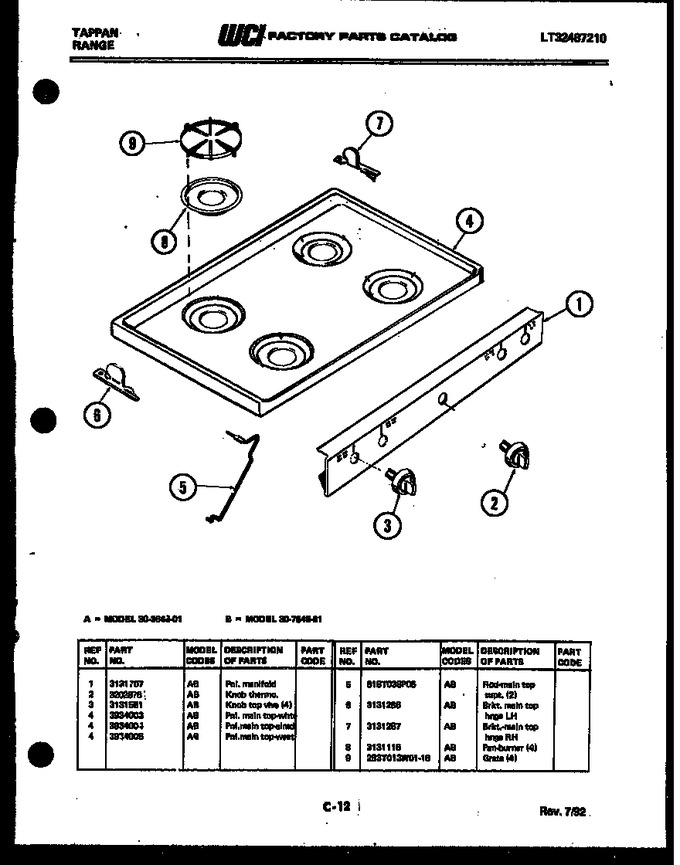

Diagram for 30-7648-66-01
