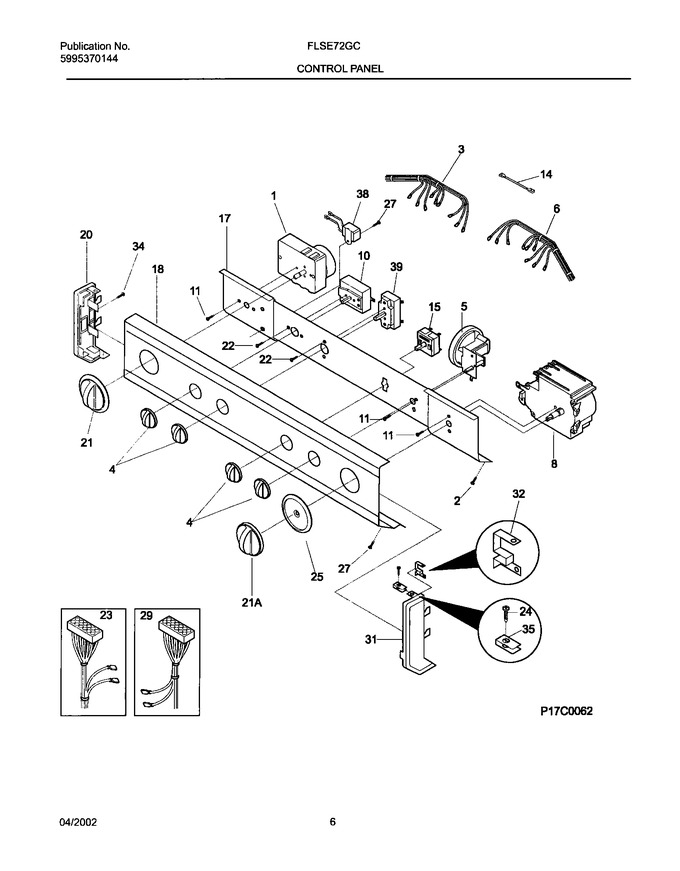

07 - Control Panel


09 - Wshr Cab,top


11 - Wshr Mtr,hose


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer			Immediately	$ 269.37
2	131168200		Screw,8-18 X 0.31 ,12			Immediately	$ 14.18
3	131662700		Harness-ctrl				$ 228.64
4	131873403		Knob-rotary		Appelez-nous	-
5	134493500		Switch-pressure   (Replaces: 131692200)				$ 248.69
6	134122200		Harn-wshr-cont-w/temp Sw		Appelez-nous	-
8	134049600		Timer Elec S Mallory Delta				$ 360.19
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131975610		Brkt-cont Mtg Weld-turn/start		Appelez-nous	-
18	131580500		Panel-control, Almond		Appelez-nous	-
20	131288103		End Cap, Almond Lh		Appelez-nous	-
21	131873303		Knob/ind Dryer Timer Alm,21				$ 68.99
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976803		Pntr-alm/dk Brn Ind-lc Wshr G2		Appelez-nous	-
27	131892100		Scr 6-20x.230 Pph B Pt		Appelez-nous	-
31	131288213		End Cap, Almond Rh		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
39	131753000		Switch-dryer Temp 4 Pos Rot		Appelez-nous	-
21A	131977203		Knob-alm-lc Wsh Timer G2		Appelez-nous	-
F10	134399700		Switch-start   (Replaces: 131447500)			Immediately	$ 83.77
F14	3205243		Resistor-power, 4.4k		Appelez-nous	-
F15	131621100		Switch-water Temp		Appelez-nous	-
F23	134119400		Harness-lcd Main Elec				$ 280.25
F29	134113400		Harn-lwr Wshr L/c Emerson 2spd		Appelez-nous	-
F38	5303286537		Buzzer				$ 93.61
NI	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
