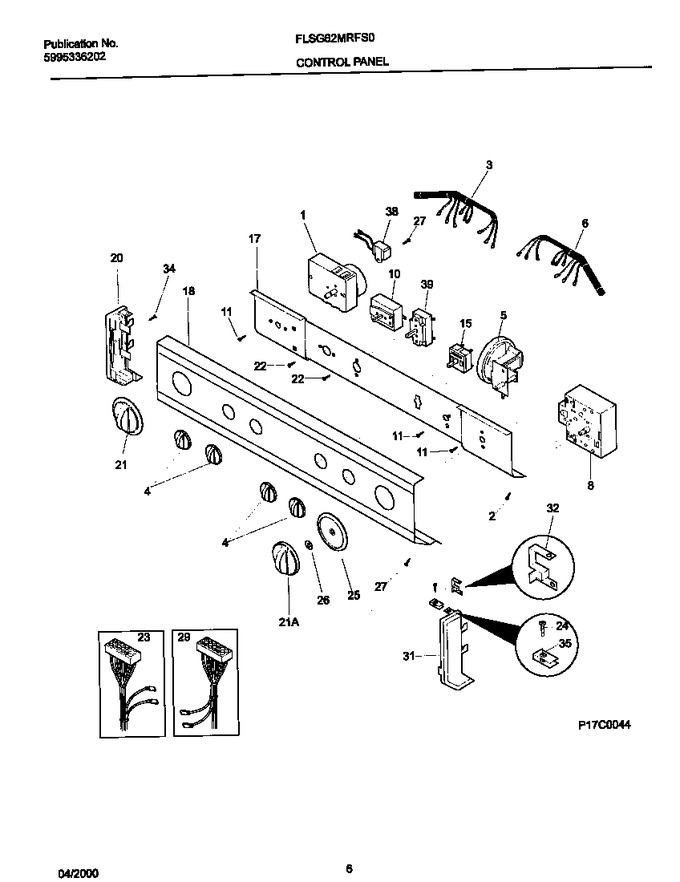

04 - P17c0044 Control Panel


05 - P17r0010 Wshr Cab,top


06 - P17t0039 Wshr Mtr,hose


07 - P17m0010 Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303297139		Timer-dryer				$ 387.45
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131946500		Harn-cont-lcd Wj Gas Tts		Appelez-nous	-
4	131873401		Knob-rotary-white   (Replaces: 131168101)				$ 49.73
5	131827400		Switch-pressure		Appelez-nous	-
6	131668500		Harnes-cont Wshr		Appelez-nous	-
8	131437500		Timer-washer				$ 403.39
10	134399700		Switch-start   (Replaces: 131447500)			Immediately	$ 83.77
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
15	131621100		Switch-water Temp		Appelez-nous	-
17	131712711		Bracket-control		Appelez-nous	-
18	131955300		Trimplate Fdg8wjss		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131873304		Knob-dryer Timer, White   (Replaces: 131167801)			Immediately	$ 59.54
21	131167601		Knob-timer Washer, White				$ 54.95
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
23	131848700		Harness-lcd Main Gas		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131167701		Dial-timer-white				$ 61.81
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131778800		Harn-lwr Wshr		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
39	131753000		Switch-dryer Temp 4 Pos Rot		Appelez-nous	-
*39762	131209800		Clamp-sw. Pressure				$ 65.92
*39763	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
