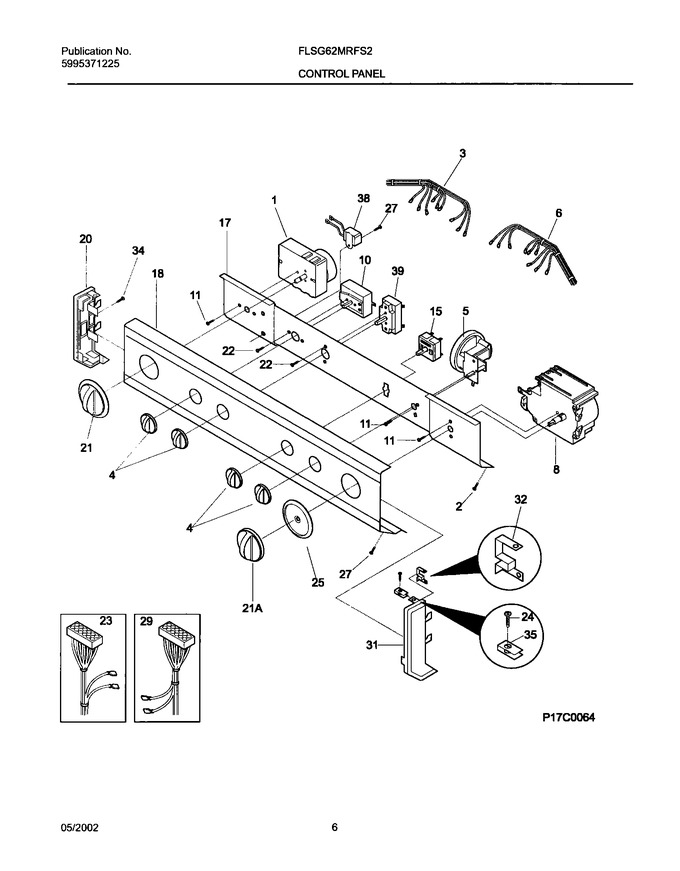

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303297139		Timer-dryer				$ 387.45
2	131168200		Screw,8-18 X 0.31 ,12			Immediately	$ 14.18
3	131946500		Harn-cont-lcd Wj Gas Tts		Appelez-nous	-
4	131873401		Knob-rotary				$ 49.73
5	131827400		Switch-pressure		Appelez-nous	-
6	134122200		Harn-wshr-cont-w/temp Sw		Appelez-nous	-
8	134049600		Timer Elec S Mallory Delta				$ 360.19
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131975610		Brkt-cont Mtg Weld-turn/start		Appelez-nous	-
18	131955300		Trimplate Fdg8wjss		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131873304		Asmy-knob/ind   (Replaces: 131873301)			Immediately	$ 59.54
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976801		Pntr-wht/blue Ind-lc Wshr R1				$ 43.16
27	131892100		Scr 6-20x.230 Pph B Pt		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
39	131753000		Switch-dryer Temp 4 Pos Rot		Appelez-nous	-
21A	131977201		Knob-wht-lc Wsh Timer G1/r1				$ 70.85
F10	134399700		Switch-start   (Replaces: 131447500)			Immediately	$ 83.77
F15	131621100		Switch-water Temp		Appelez-nous	-
F23	131848700		Harness-lcd Main Gas		Appelez-nous	-
F29	134113400		Harn-lwr Wshr L/c Emerson 2spd		Appelez-nous	-
F38	5303286537		Buzzer				$ 93.61
NI	131209800		Clamp-sw. Pressure				$ 65.92
NI	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
