SELECT A DIAGRAM

02 - Dryer Cabinet, Door, Drum


03 - Dryer Motor, Base, Ignitor


04 - Controls


05 - Washer Cabinet, Base, Lid


06 - Washer Motor, Tub


07 - Transmission

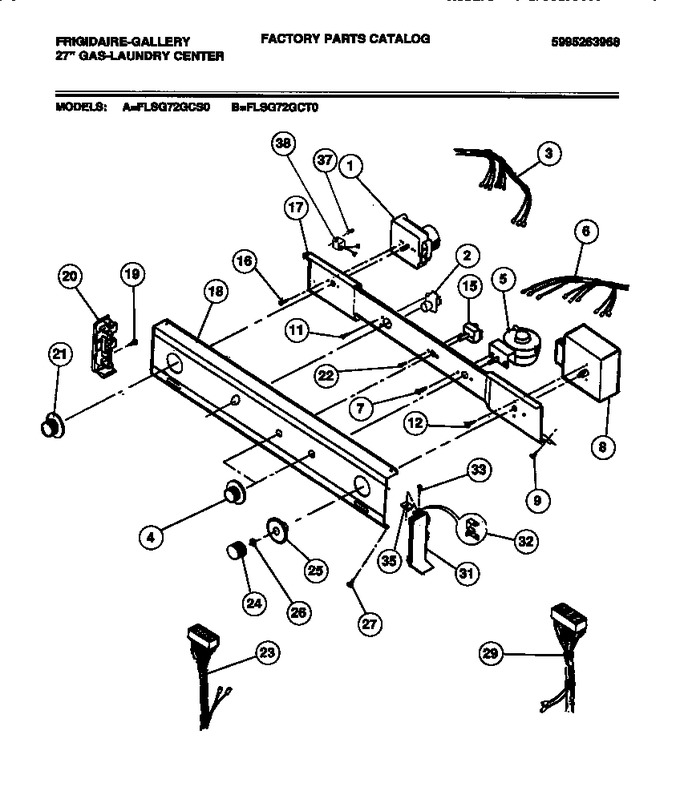

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131063300		Timer-dryer		Appelez-nous	-
2	5303211158		Switch-start-white		Appelez-nous	-
3	131321200		Harness-dryer Control		Appelez-nous	-
4	131873401		Knob-rotary-white   (Replaces: 131168104)				$ 49.73
5	134493500		Switch-water Level   (Replaces: 131337900)				$ 248.69
6	131383300		Harness-washer Control		Appelez-nous	-
7	131168200		Screw			Immediately	$ 14.18
8	131294000		Timer-washer		Appelez-nous	-
9	131168200		Screw			Immediately	$ 14.18
11	218359202		Screw   (Replaces: 5303283289)				$ 10.63
12	218359202		Screw   (Replaces: 5303283289)				$ 10.63
15	5308008463		Switch-temperature				$ 84.39
16	218359202		Screw   (Replaces: 5303283289)				$ 10.63
17	131288002		Bracket-control-panel		Appelez-nous	-
18	131412000		Panel-control-white		Appelez-nous	-
19	131243700		Screw (4)				$ 3.36
20	5303211162		Endcap-lh-white		Appelez-nous	-
21	131873304		Knob-dryer-white   (Replaces: 131167804)			Immediately	$ 59.54
22	3161259		Screw				$ 6.83
23	131315600		Harness-dryer		Appelez-nous	-
24	131167601		Knob-washer-white				$ 54.95
25	131167704		Dial-timer-white				$ 52.63
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw		Appelez-nous	-
29	131200500		Harness-washer		Appelez-nous	-
31	5303211167		End Cap-rh-white		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
33	134156200		Screw   (Replaces: 131209600)			Immediately	$ 14.89
35	5308014350		Clip		Appelez-nous	-
37	131243700		Screw				$ 3.36
38	5303210285		Buzzer				$ 65.78
*46603	5303270950		Switch-temp Dryer		Appelez-nous	-
*46604	3161259		Screw				$ 6.83
*46605	5303210651		Spacer-pad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
