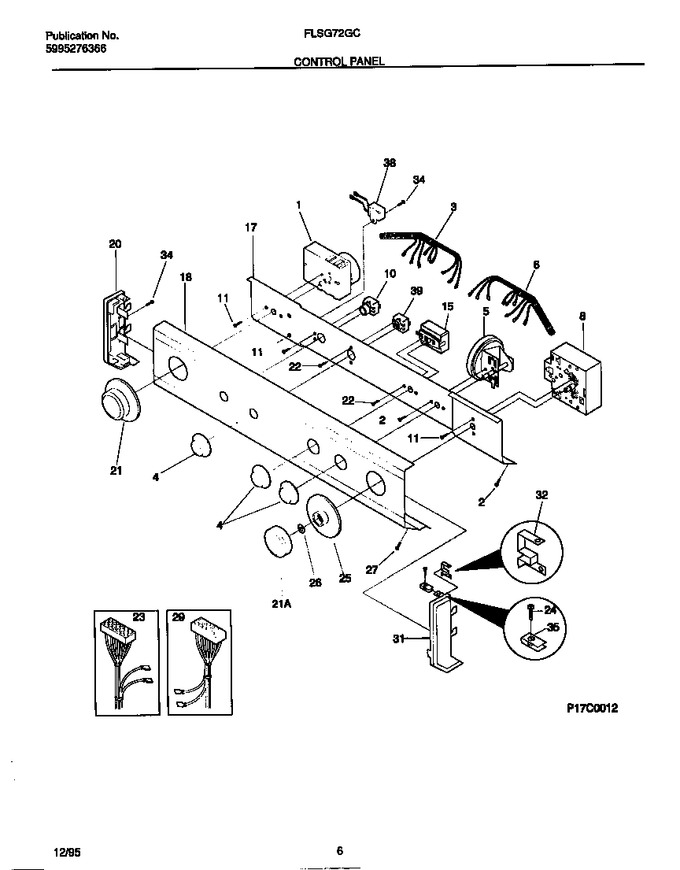

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131063300		Timer-dryer		Appelez-nous	-
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
3	131321200		Harness-dryer Cont.		Appelez-nous	-
4	131873401		Knob-rotary-white   (Replaces: 131168104)				$ 49.73
5	134493500		Switch-pressure   (Replaces: 131337900)				$ 248.69
6	131446300		Harness-washer Cont		Appelez-nous	-
8	131437500		Timer-washer				$ 403.39
10	5303211158		Switch-push/start, White		Appelez-nous	-
11	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
15	5308008463		Switch-water Temp				$ 84.39
17	131288002		Bracket-controls		Appelez-nous	-
18	131412000		Panel-control-white		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131167601		Knob-washer Timer, White				$ 54.95
21	131873304		Knob-timer Dryer, White   (Replaces: 131167804)			Immediately	$ 59.54
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
23	131315600		Harness-main Dryer		Appelez-nous	-
25	131167704		Dial-timer, White, Washer				$ 52.63
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131490400		Harness-washer		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303210285		Buzzer				$ 65.78
39	5303270950		Switch-dryer Temp		Appelez-nous	-
*41885	3281126		Clip-wiring, Gas Bracket		Appelez-nous	-
*41886	131209800		Clamp-sw. Pressure				$ 65.92
*41887	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
*41888	5303210651		Pad-spacer, Cork		Appelez-nous	-
*41889	5303281103		Tie-harness		Appelez-nous	-
