SELECT A DIAGRAM

01 - Cover


02 - Upper Cabinet/drum/heater


03 - Motor/blower/belt

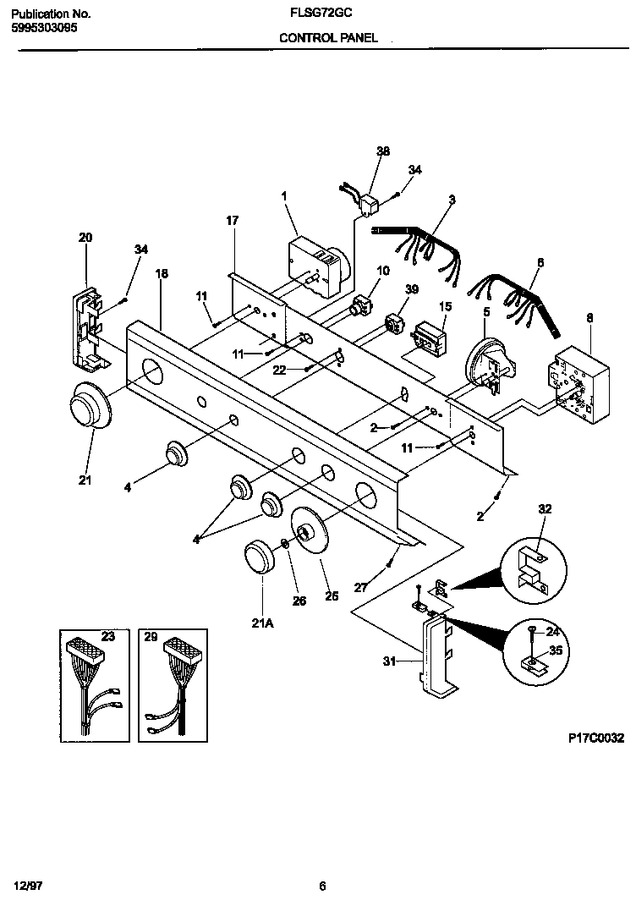

04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131063300		Timer-dryer		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131662800		Harness-dryer, Control		Appelez-nous	-
4	131873401		Knob-rotary-white   (Replaces: 131168104)				$ 49.73
5	134493500		Switch-pressure   (Replaces: 131337900)				$ 248.69
6	131592700		Harness-washer Cont				$ 154.07
8	131437500		Timer-washer				$ 403.39
10	134399700		Switch-start   (Replaces: 131447500)			Immediately	$ 83.77
11	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
15	131621100		Switch-water Temp		Appelez-nous	-
17	131621702		Bracket-controls		Appelez-nous	-
18	131580600		Panel-control, White		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131167601		Knob-timer Washer, White				$ 54.95
21	131873304		Knob-timer Dryer, White   (Replaces: 131167804)			Immediately	$ 59.54
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
23	131491400		Harness-dryer		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131167704		Dial-timer, White, Washer				$ 52.63
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131654700		Harness-washer		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
39	5303270950		Switch-dryer Temp		Appelez-nous	-
*87722	3281126		Clip-wiring, Gas Bracket		Appelez-nous	-
*87723	131209800		Clamp-sw. Pressure				$ 65.92
*87724	5304464772		Strap   (Replaces: 5303161300)				$ 10.63

    View Diagram in Separate Window       Print Part List
