SELECT A DIAGRAM

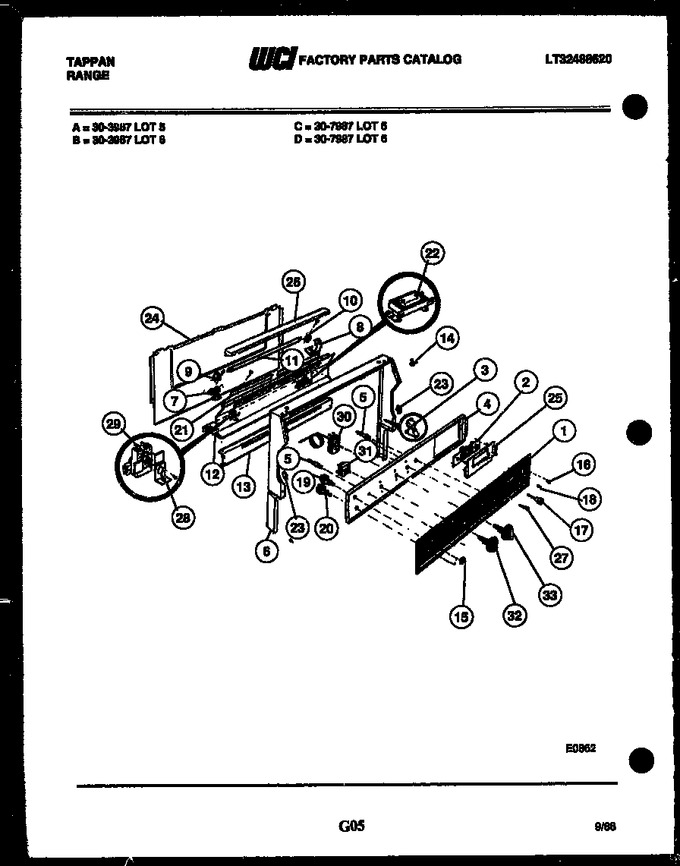

02 - Backguard


03 - Door Parts


04 - Cooktop Parts


05 - Burner, Manifold And Gas Control


06 - Body Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131729		Glass Control		Appelez-nous	-
2	3131722		Clock		Appelez-nous	-
3	3131237		Backguard Spprt.		Appelez-nous	-
4	554T400F02-18		Plate Mtd Instr.		Appelez-nous	-
5	318T023P11		Ind. Light (3)		Appelez-nous	-
6	3131436		Trim Wrapper		Appelez-nous	-
7	3131576		Fluor, Brkt Lh		Appelez-nous	-
8	3131577		Fluor, Brkt Rh		Appelez-nous	-
9	3051222		Recpt, Fluor Light Lh		Appelez-nous	-
10	3051223		Recpt, Fluor, Light Rh		Appelez-nous	-
11	3131275		Lamp Bulb Fluor.				$ 49.40
12	3131138		Panel Splasher		Appelez-nous	-
13	3131241		Trim-vent		Appelez-nous	-
14	241T049P01		Fstnr-glass(2)		Appelez-nous	-
15	045T071P01		Bezel, Switch		Appelez-nous	-
16	3051194		Nut - Decor (2)		Appelez-nous	-
17	3131489		Bttn. Elec. Clock		Appelez-nous	-
18	358T206P01		Knob, Clock		Appelez-nous	-
19	695T211P02		Switch - Oven Light		Appelez-nous	-
20	3051312		Switch - Fluor Light		Appelez-nous	-
21	3131145		Glass, Work Light (2)		Appelez-nous	-
22	3051115		Ballast		Appelez-nous	-
23	123T120P03		Cap Lh		Appelez-nous	-
24	3131123		Shield B/g		Appelez-nous	-
25	3131556		Plate-timer Mtg		Appelez-nous	-
26	3131137		Shield - Fluor Light		Appelez-nous	-
27	3051347		Shaft-elect. Clock		Appelez-nous	-
28	3131467		Angle-s/c Therm. Mtg		Appelez-nous	-
29	722T071P01		Thermo Oven S/c		Appelez-nous	-
30	3131964		Thermo-bake		Appelez-nous	-
31	697T073P01		Switch Selector		Appelez-nous	-
32	3131724		Knob-sel. Sw.		Appelez-nous	-
33	3131725		Knob Thermo.		Appelez-nous	-
*13712	3131278		Angl. Light Dflctr.		Appelez-nous	-
23A	123T120P04		Cap Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
