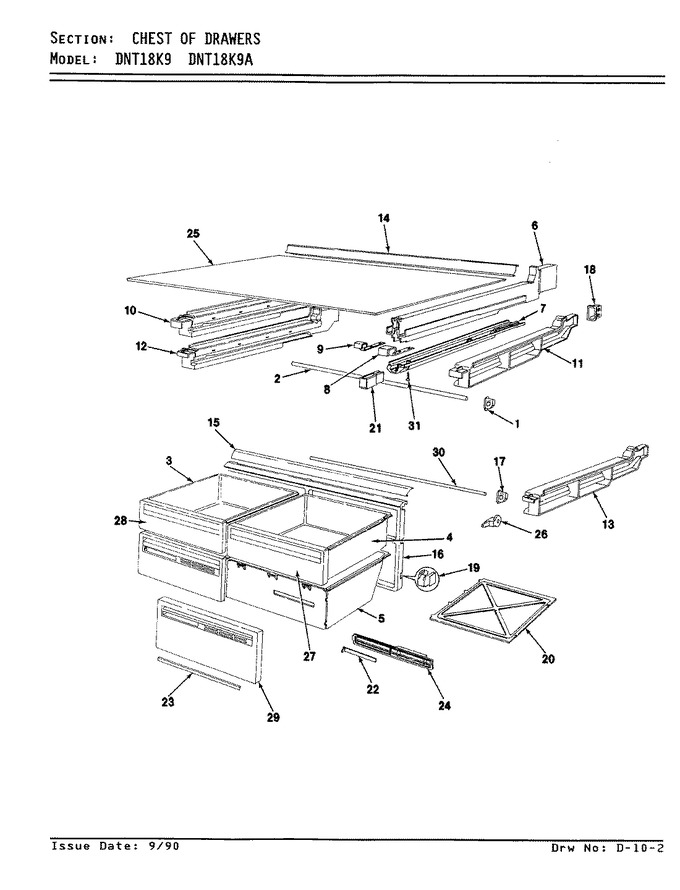

01 - Chest Of Drawers
02 - Doors
03 - Freezer Compartment
04 - Fresh Food Compartment
05 - Unit Compartment & System
06 - Water & Ice Dispenser
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67205-1 | Cup Shelf Support |
|
- | |||||
| 2 | 67782-3 | Rod, Crisper Shelf |
|
- | |||||
| 3 | 68262-3 | Pan, Meat Keeper |
|
- | |||||
| 4 | 68262-6 | Pan, Meat Keeper |
|
- | |||||
| 5 | 68263-3 | Pan, Cripser |
|
- | |||||
| 6 | 68267-2 | Rail, Upper Center |
|
- | |||||
| 7 | 68268-2 | Rail, Bottom Center |
|
- | |||||
| 8 | 68269-1 | Bracket, Center Rail |
|
- | |||||
| 9 | 68269-2 | Bracket, Center Rail |
|
- | |||||
| 10 | 68270-3 | Rail, Side Lh-up |
|
- | |||||
| 11 | 68270-4 | Rail, Side Rh-up |
|
- | |||||
| 12 | 68270-7 | Rail, Side Lh-low |
|
- | |||||
| 13 | 68270-8 | Rail, Side Rh-low |
|
- | |||||
| 14 | 68271-2 | Trim, Rear Shelf |
|
- | |||||
| 15 | 68787-8 | Front Shelf Trim |
|
- | |||||
| 16 | 68273-4 | Front, Four Drawer |
|
- | |||||
| 17 | 68274-1 | Cup, Support Rod |
|
- | |||||
| 18 | 68275-1 | Cup, Rear Rail Support |
|
- | |||||
| 19 | 68277-1 | Clip, Front Bottom |
|
- | |||||
| 20 | 68278-3 | Cover, Pan |
|
- | |||||
| 21 | 68280-2 | Guide, Center Rail |
|
- | |||||
| 22 | 68582-4 | Control, Crisper Slide |
|
- | |||||
| 23 | 68583-10 | Handle Insert Trim |
|
- | |||||
| 23 | 68583-12 | Handle Insert Trim |
|
- | |||||
| 23 | 68583-8 | Trim, Handle Insert |
|
- | |||||
| 24 | 68288-4 | Retainer, Slide Control |
|
- | |||||
| 25 | 68292-6 | Cover, Glass |
|
- | |||||
| 26 | 68339-1 | Stud, Front Clip |
|
- | |||||
| 27 | 68373-1 | Front Assy. |
|
- | |||||
| 28 | 68373-5 | Front Assy. |
|
- | |||||
| 29 | 68398-1 | Screw, Anchor |
|
- | |||||
| 29 | 68374-1 | Crisper Pan Assy. |
|
- | |||||
| 29 | 68391-1 | Cover, Air Inlet |
|
- | |||||
| 30 | 68603-1 | Rod, Front Support |
|
- | |||||
| 30 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 31 | 68394-1 | Cup, Frame Mount |
|
- | |||||
| 31 | 405003-1 | Screw |
|
- | |||||
| 31 | 68393-1 | Pin, Frame Guide |
|
- |
