SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Ice Maker


06 - Unit Compartment & System

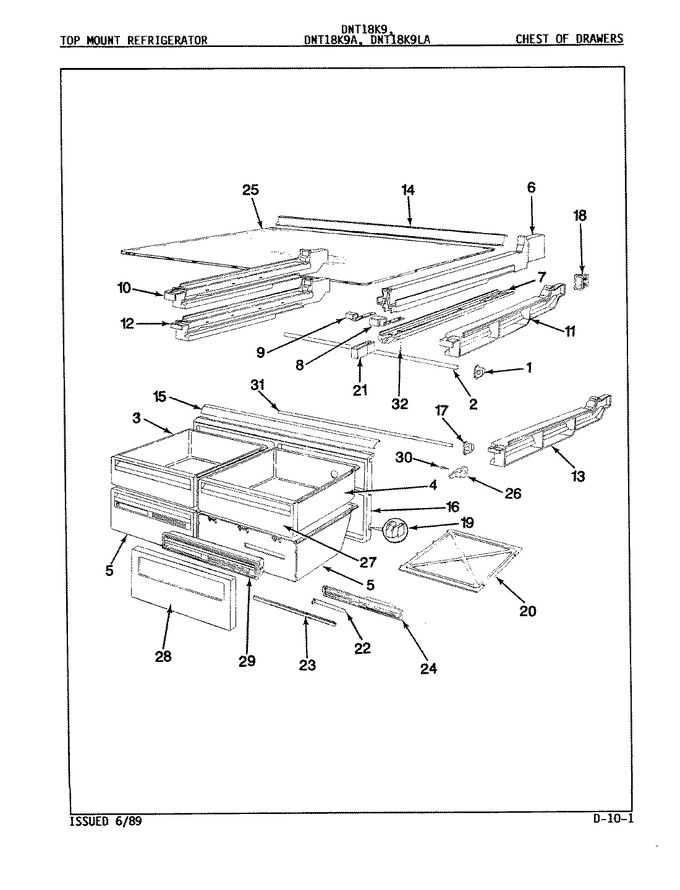

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67205-1		Cup Shelf Support		Appelez-nous	-
2	67719-3		Rod, Crisper Shelf		Appelez-nous	-
3	68262-3		Pan, Meat Keeper		Appelez-nous	-
4	68262-6		Pan, Meat Keeper		Appelez-nous	-
5	68263-3		Pan, Cripser		Appelez-nous	-
6	68267-2		Rail, Upper Center		Appelez-nous	-
7	68268-2		Rail, Bottom Center		Appelez-nous	-
8	68269-1		Bracket, Center Rail		Appelez-nous	-
9	68269-2		Bracket, Center Rail		Appelez-nous	-
10	68270-3		Rail, Side Lh-up		Appelez-nous	-
11	68270-4		Rail, Side Rh-up		Appelez-nous	-
12	68270-7		Rail, Side Lh-low		Appelez-nous	-
13	68270-8		Rail, Side Rh-low		Appelez-nous	-
14	68271-2		Trim, Rear Shelf		Appelez-nous	-
15	68272-4		Trim, Front		Appelez-nous	-
16	68273-4		Front, Four Drawer		Appelez-nous	-
17	68274-1		Cup, Support Rod		Appelez-nous	-
18	68275-1		Cup, Rear Rail Support		Appelez-nous	-
19	68277-1		Clip, Front Bottom		Appelez-nous	-
20	68278-3		Cover, Pan		Appelez-nous	-
21	68280-2		Guide, Center Rail		Appelez-nous	-
22	68283-4		Slide Control, Crisper		Appelez-nous	-
23	68284-12		Trim, Handle Utility		Appelez-nous	-
23	68284-10		Trim, Handle Insert Meal		Appelez-nous	-
23	68284-8		Trim, Handle		Appelez-nous	-
24	68288-4		Retainer, Slide Control		Appelez-nous	-
25	68292-6		Cover, Glass		Appelez-nous	-
26	68339-1		Stud, Front Clip		Appelez-nous	-
27	68373-4		Front Assy.		Appelez-nous	-
27	68286-4		Insert, Meat Pan Handle		Appelez-nous	-
28	68374-4		Crisper Front		Appelez-nous	-
29	68391-1		Cover, Air Inlet		Appelez-nous	-
29	68284-12		Trim, Handle Utility		Appelez-nous	-
30	68398-1		Screw, Anchor		Appelez-nous	-
31	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
32	405003-1		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
