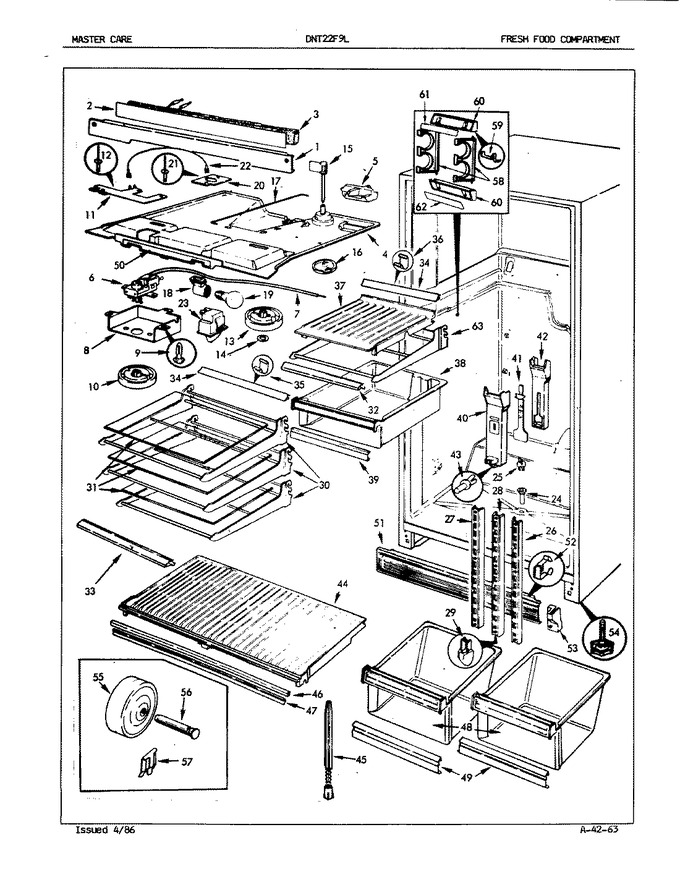

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65797-3-AM		Divider, Mullion (alm)		Appelez-nous	-
1	9986-117		Screw		Appelez-nous	-
2	60105-9		Heater Wire		Appelez-nous	-
3	60140-3		Insulation		Appelez-nous	-
3	60560-3		Wire Harness		Appelez-nous	-
4	60085-43		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 52881-45)			Immediately	$ 233.80
7	4008-12		Plastic Tube		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	60061-1		Knob		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	60061-3		Knob		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	60071-1		Damper		Appelez-nous	-
16	60082-3		Crank, Frzr Control		Appelez-nous	-
17	60078-4		Rod, Frzr Control		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
21	29675-22		Ground Wire		Appelez-nous	-
22	29675-28		Ground Wire		Appelez-nous	-
23	55732-3		Switch		Appelez-nous	-
24	54531-8		Grommet		Appelez-nous	-
25	65039-1		Cap, Drain Tube		Appelez-nous	-
26	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
27	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
28	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
29	60340-1		End Cap, Center Rail		Appelez-nous	-
30	60570-11		Frame, Shelf		Appelez-nous	-
31	65598-4		Glass Shelf		Appelez-nous	-
32	60414-6		Trim		Appelez-nous	-
33	60524-5		Trim		Appelez-nous	-
34	65276-7		Trim, Rear		Appelez-nous	-
35	65358-1		Clip		Appelez-nous	-
36	65358-2		Clip		Appelez-nous	-
37	60075-6		Cover, Meat Pan		Appelez-nous	-
38	60466-226		Pan, Meat		Appelez-nous	-
39	60132-11		Handle		Appelez-nous	-
40	60094-3		Tunnel		Appelez-nous	-
41	60093-2		Damper, Air Tunnel		Appelez-nous	-
42	60092-2		Insulation		Appelez-nous	-
43	28013-2		Rivet, Air Tunnel		Appelez-nous	-
44	60019-8		Shelf, Crisper		Appelez-nous	-
45	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35
46	60454-3		Trim		Appelez-nous	-
47	60148-6		Seal		Appelez-nous	-
48	60457-256		Pan, Crisper		Appelez-nous	-
49	60132-3		Handle		Appelez-nous	-
50	60571-1		Insert		Appelez-nous	-
51	60138-20		Kickplate		Appelez-nous	-
52	60100-1		Clip, Kickplate				$ 5.85
53	60381-2		End Cap		Appelez-nous	-
53	402039-4		Screw		Appelez-nous	-
54	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
55	29834-2		Wheel		Appelez-nous	-
56	29835-2		Pin, Wheel		Appelez-nous	-
57	60216-1		Clip		Appelez-nous	-
58	56519-4		Rack, Wine		Appelez-nous	-
58	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
59	58057-1		Spring, Wine Rack		Appelez-nous	-
60	65689-1		Support, Wine Rack		Appelez-nous	-
61	65753-3		Insert		Appelez-nous	-
62	65753-14		Insert		Appelez-nous	-
63	19530-36		Nylon Nut		Appelez-nous	-
63	60570-4		Frame, Shelf		Appelez-nous	-
63	55512-1		Grommet		Appelez-nous	-
63	55513-1		Tube		Appelez-nous	-
