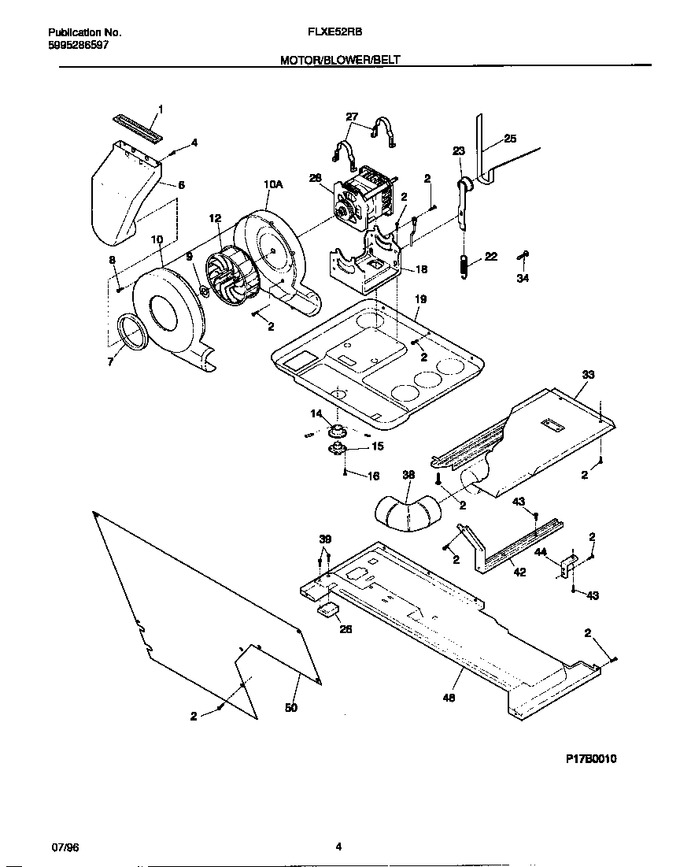

03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal-air Duct				$ 16.30
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
4	131362400		Fastener				$ 9.41
6	5304521121		Duct-air   (Replaces: 131460300)				$ 118.56
7	3204490		Seal-blower Housing				$ 14.18
8	3205245		Screw-blower Hsg, Pph Ab St/z/ch, 6-18 X .60		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	131287600		Housing-blower, Front		Appelez-nous	-
10	131575200		Housing-blower, Rear		Appelez-nous	-
12	131476300		Wheel-blower			Immediately	$ 47.00
14	5303206879		Heater-thermostat		Appelez-nous	-
15	3204307		Thermostat-control				$ 136.79
16	3204308		Screw-thermostat, Pph Cup Pt, 8-18 X .625		Appelez-nous	-
18	131367101		Cradle, Motor		Appelez-nous	-
19	131363901		Pan-motor Cradle		Appelez-nous	-
22	3205241		Spring-idler				$ 75.83
23	5304507499		Arm-idler Assy   (Replaces: 131434700)			Immediately	$ 42.66
25	137292700		Belt-dryer   (Replaces: 5303283287)			Immediately	$ 9.34
26	5303212870		Block-support		Appelez-nous	-
27	131419800		Clamp-motor				$ 8.18
28	5303937189		Motor & Pulley   (Replaces: 131542900)			Immediately	$ 294.28
33	131112001		Shield-access		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
38	3204320		Elbow-exhaust		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
42	3204324		Bracket-marriage		Appelez-nous	-
43	3204325		Screw-bracket		Appelez-nous	-
44	3204326		Bracket-external				$ 43.24
48	131379201		Pan-bottom		Appelez-nous	-
50	3204329		Cover-safety				$ 40.16
*13881	131453000		Bushing-snap				$ 10.63
