SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


06 - Water & Ice Dispenser

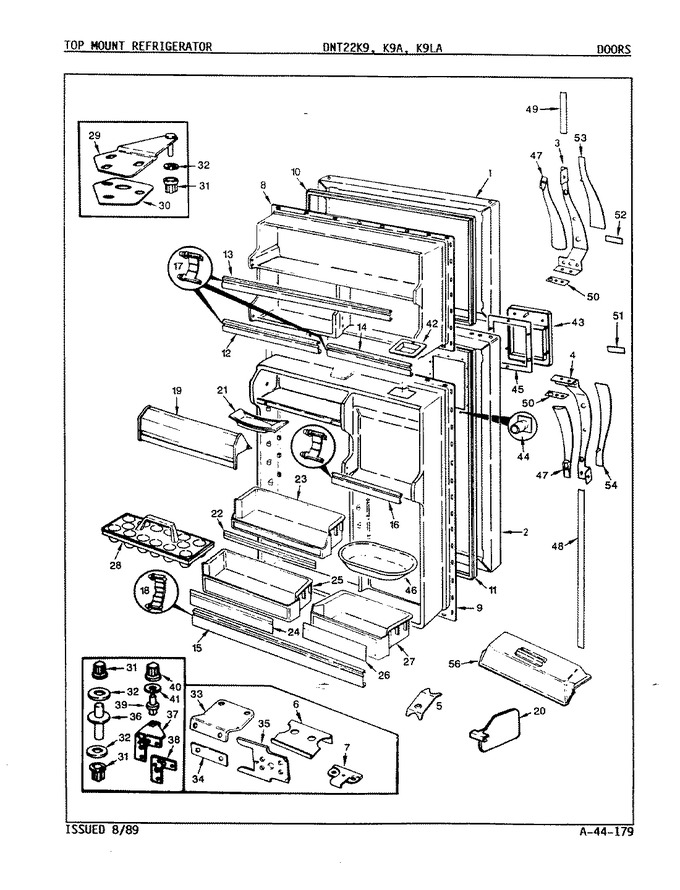

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-30-AM		Outer Panel		Appelez-nous	-
2	60032-78-AM		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	495036-900		Plug Button		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	66255-4		Door Handle		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
5	9986-122		Screw		Appelez-nous	-
5	60123-2		Clip, Stop Screw		Appelez-nous	-
5	9986-112		Screw		Appelez-nous	-
6	60030-1		Door Stop		Appelez-nous	-
7	9986-108		Screw		Appelez-nous	-
7	60419-6		Door Stop		Appelez-nous	-
8	65937-9		Liner, Door		Appelez-nous	-
9	65275-5		Screw		Appelez-nous	-
9	66527-5		Liner, F.f. Door		Appelez-nous	-
10	66199-7		Gasket, Door		Appelez-nous	-
11	66199-8		Gasket, Door		Appelez-nous	-
12	WP61003045		Trim   (Replaces: 68375-6)				$ 129.55
13	WP61003045		Trim, Door   (Replaces: 68375-7)				$ 129.55
14	WP61003045		Trim, Door   (Replaces: 68375-8)				$ 129.55
15	68376-4		Trim		Appelez-nous	-
16	68376-16		Trim, Shelf		Appelez-nous	-
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
18	65246-1		Retainer				$ 5.04
19	66184-367		Door, Dairy		Appelez-nous	-
20	66645-6		Organizer Package		Appelez-nous	-
21	29936-2		Tray, Butter		Appelez-nous	-
22	68130-58		Insert, Pickoff Shelf		Appelez-nous	-
23	60037-54		Pick-off Shelf		Appelez-nous	-
24	68130-62		Insert, Pickoff Shelf		Appelez-nous	-
25	60037-53		Pick-off Shelf		Appelez-nous	-
26	68130-63		Trim, Pick-off Shelf		Appelez-nous	-
27	60037-35		Door Shelf		Appelez-nous	-
28	60066-1		Tray, Egg		Appelez-nous	-
29	53709-18		Door Hinge, Upper		Appelez-nous	-
29	65003-9		Cover, Upper Hinge		Appelez-nous	-
30	65031-1		Shim, Upper Hinge		Appelez-nous	-
31	66036-1		Bushing,top/center Hinge		Appelez-nous	-
32	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
32	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
32	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
33	60031-2		Door Hinge, Center		Appelez-nous	-
34	60034-1		Spacer, Center Hinge		Appelez-nous	-
35	60622-1		Tapping Plate		Appelez-nous	-
35	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
36	60035-4		Pin, Center Hinge		Appelez-nous	-
37	60630-3		Hinge		Appelez-nous	-
37	403062-5		Screw		Appelez-nous	-
38	60626-1		Shim, Lower Hinge		Appelez-nous	-
39	65418-1		Pin		Appelez-nous	-
40	66037-1		Hinge Bushing		Appelez-nous	-
41	54233-4		Spacer				$ 7.70
42	402038-1		Screw		Appelez-nous	-
42	66775-6		Collar		Appelez-nous	-
43	60482-64		Escutchion Assy		Appelez-nous	-
44	65211-2		Retainer, Escutcheon		Appelez-nous	-
45	63057-1		Seal, Escutcheon		Appelez-nous	-
46	68426-1		Dish, Microwave		Appelez-nous	-
47	60455-4		Insert		Appelez-nous	-
48	60453-21		Handle Trim Extension		Appelez-nous	-
49	60453-22		Handle Trim Extension		Appelez-nous	-
50	60456-1		Shim		Appelez-nous	-
51	60603-13		Insert, Handle		Appelez-nous	-
52	60603-14		Insert, Handle		Appelez-nous	-
52	66651-3		Trim, Door		Appelez-nous	-
53	68016-5		Handle Insert, Front		Appelez-nous	-
54	68017-3		Insert, Vinyl Clad		Appelez-nous	-
54	68016-6		Handle Insert, Front		Appelez-nous	-
