SELECT A DIAGRAM

01 - Cover


02 - P17u0020 Dry Cab,drm,htr


03 - P17b0022 Dry Mtr,belt

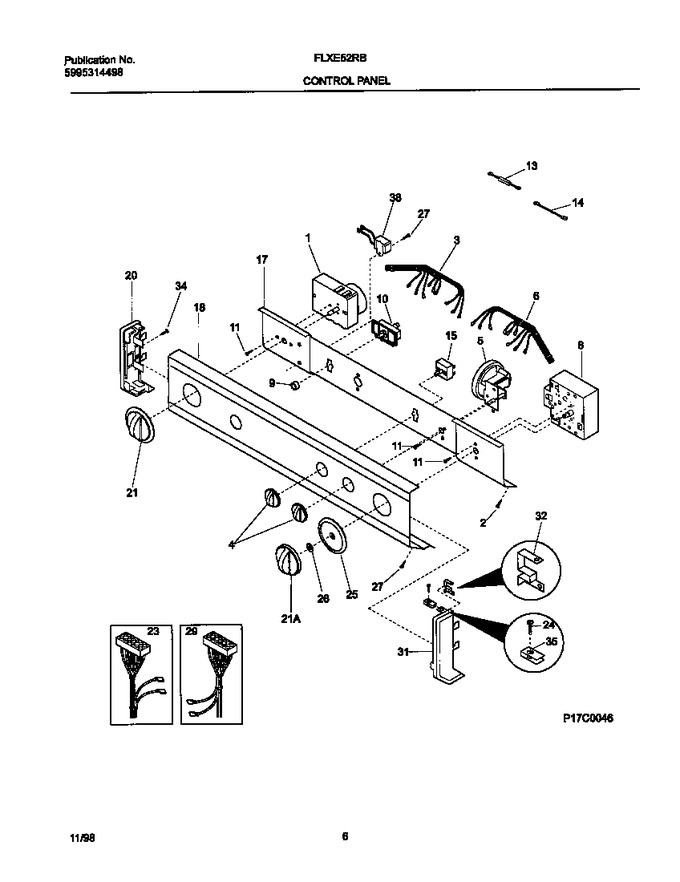

04 - P17c0046 Control Panel


05 - P17r0010 Wshr Cab,top


06 - P17t0034 Wshr Mtr,hose


07 - P17m0007 Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131062300		Timer-dryer				$ 243.81
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131305700		Harness-dryer Cont		Appelez-nous	-
4	131168102		Knob-rotary-almond		Appelez-nous	-
5	134422700		Switch-pressure 3/4 Hp   (Replaces: 131692100)			Immediately	$ 98.06
6	131668500		Harnes-cont Wshr		Appelez-nous	-
8	131437400		Timer-washer				$ 254.35
9	131111504		Knob-start Switch, Almond		Appelez-nous	-
10	131628900		Switch-push Start				$ 55.80
11	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
13	3205877		Resistor, 3.0k				$ 51.14
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	131620800		Switch-temperature		Appelez-nous	-
17	131712602		Bracket-control		Appelez-nous	-
18	131623200		Panel-control, Almond		Appelez-nous	-
20	131288102		End Cap, Almond, Lh		Appelez-nous	-
21	131167802		Knob-dryer Timer, Almond		Appelez-nous	-
21	131167602		Knob-washer Timer, Almond		Appelez-nous	-
23	131753200		Harness-dryer Main		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131167702		Dial-timer-almond		Appelez-nous	-
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131778800		Harn-lwr Wshr		Appelez-nous	-
31	131288212		End Cap, Almond, Rh		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
*57041	5304464772		Strap   (Replaces: 5303161300)				$ 10.63

    View Diagram in Separate Window       Print Part List
