SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


06 - Water & Ice Dispenser

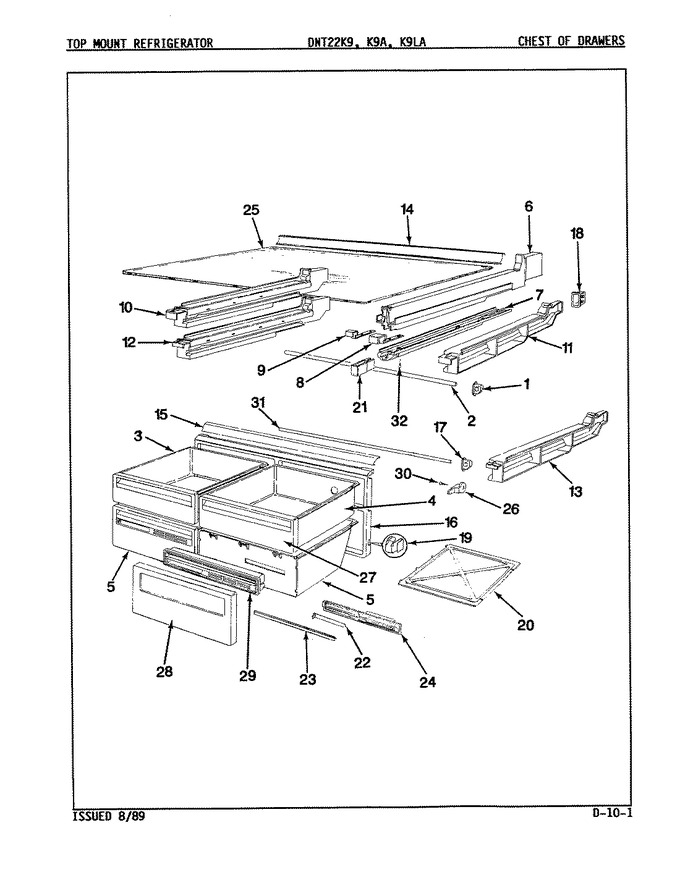

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67205-1		Cup Shelf Support		Appelez-nous	-
2	67782-4		Rod, Crisper Shelf		Appelez-nous	-
3	68262-1		Pan, Meat Keeper		Appelez-nous	-
4	68262-4		Pan, Meat Keeper		Appelez-nous	-
5	68263-1		Pan, Crisper		Appelez-nous	-
6	68267-1		Upper Rail		Appelez-nous	-
7	68268-1		Rail		Appelez-nous	-
8	68269-1		Bracket, Center Rail		Appelez-nous	-
9	68269-2		Bracket, Center Rail		Appelez-nous	-
10	68270-1		Rail, Side		Appelez-nous	-
11	68270-2		Rail, Side		Appelez-nous	-
12	68270-5		Rail, Side		Appelez-nous	-
13	68270-6		Rail, Side		Appelez-nous	-
14	68271-1		Trim		Appelez-nous	-
15	68787-7		Trim, Front Shelf		Appelez-nous	-
16	68273-3		Front, Drawer		Appelez-nous	-
17	68274-1		Cup, Support Rod		Appelez-nous	-
18	68275-1		Cup, Rear Rail Support		Appelez-nous	-
19	68277-1		Clip, Front Bottom		Appelez-nous	-
20	68278-1		Pan Cover		Appelez-nous	-
21	68280-2		Guide, Center Rail		Appelez-nous	-
22	68582-3		Control, Slide		Appelez-nous	-
23	68583-11		Trim, Handle		Appelez-nous	-
23	68583-7		Trim, Handle		Appelez-nous	-
23	68583-9		Trim, Handle		Appelez-nous	-
24	68288-3		Retainer, Control Slide		Appelez-nous	-
25	68292-4		Cover, Glass		Appelez-nous	-
26	68339-1		Stud, Front Clip		Appelez-nous	-
27	68264-3		Front, Meat Pan		Appelez-nous	-
27	68286-1		Insert, Meat Pan Handle		Appelez-nous	-
28	68640-3		Front, Crisper Pan		Appelez-nous	-
29	68391-1		Cover, Air Inlet		Appelez-nous	-
29	68287-1		Insert, Crisper Pan Handle		Appelez-nous	-
30	68398-1		Screw, Anchor		Appelez-nous	-
31	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
31	68603-2		Rod, Front Support		Appelez-nous	-
32	68394-1		Cup, Frame Mount		Appelez-nous	-
32	405003-1		Screw		Appelez-nous	-
32	68393-1		Pin, Frame Guide		Appelez-nous	-
