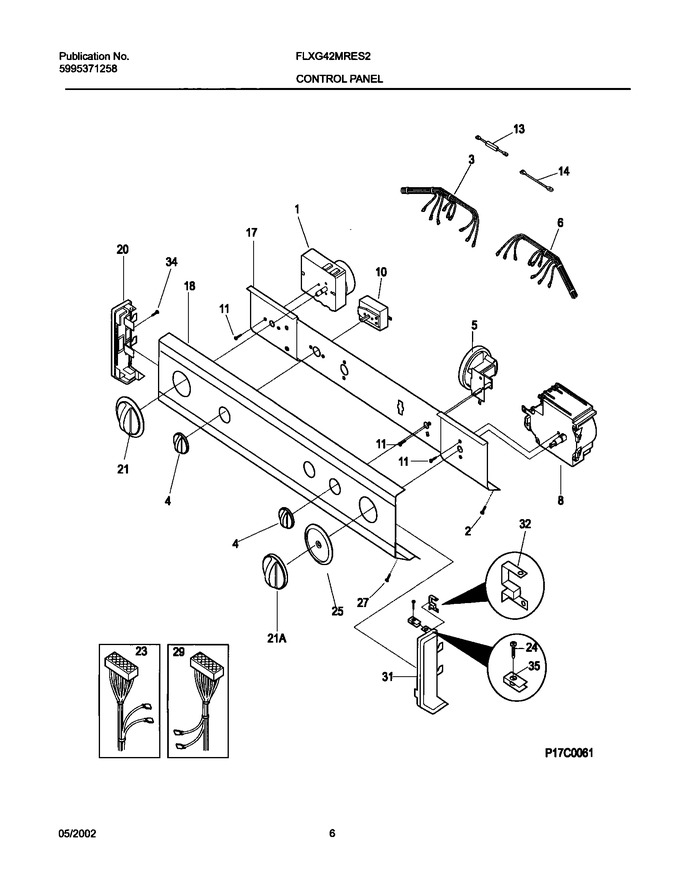

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,8-18 X 0.31 ,12			Immediately	$ 14.18
3	131956300		Harn-dryer Cont L/c Gj Gas Tts		Appelez-nous	-
4	131873401		Knob-rotary				$ 49.73
6	134121100		Lcw Control Harn W/o Temp Sw		Appelez-nous	-
8	131964100		Timer Elec H Mallory-delta			Immediately	$ 279.77
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131975610		Brkt-cont Mtg Weld-turn/start		Appelez-nous	-
18	131955200		Trimplate Fdg8gjnh		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131873304		Asmy-knob/ind   (Replaces: 131873301)			Immediately	$ 59.54
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976801		Pntr-wht/blue Ind-lc Wshr R1				$ 43.16
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
21A	131977201		Knob-wht-lc Wsh Timer G1/r1				$ 70.85
F1	131225400		Timer		Appelez-nous	-
F10	134399700		Switch-start   (Replaces: 131447500)			Immediately	$ 83.77
F23	131848700		Harness-lcd Main Gas		Appelez-nous	-
F29	134113400		Harn-lwr Wshr L/c Emerson 2spd		Appelez-nous	-
F5	134422700		Switch-pressure   (Replaces: 131692000)			Immediately	$ 98.06
NI	131209800		Clamp-sw. Pressure				$ 65.92
NI	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
