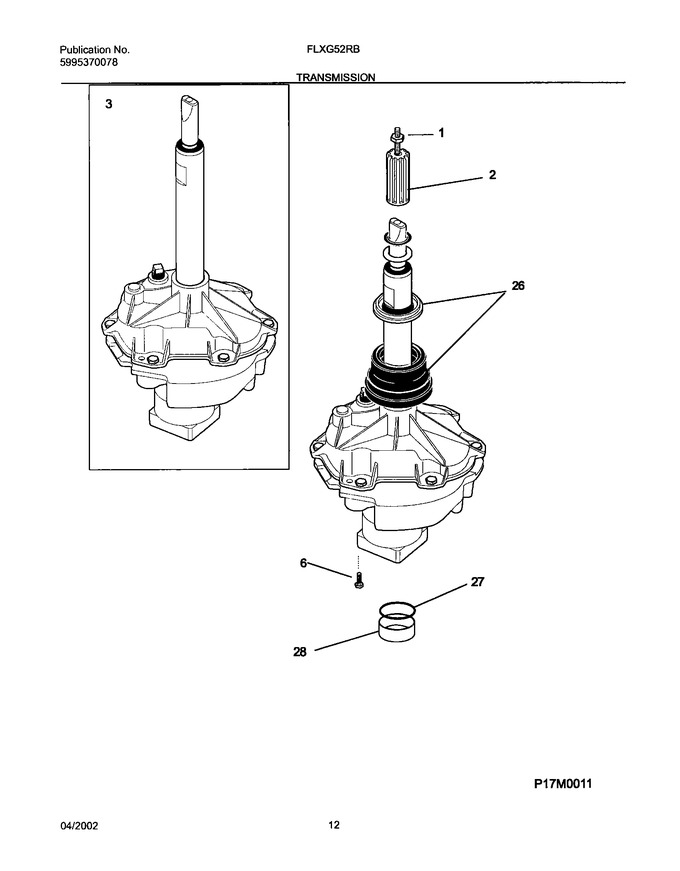

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131206800		Stud-agitator Cap				$ 48.20
2	5303306139		Hub-drive, Agitator		Appelez-nous	-
3	134735700		Asmy-trans H-helical-pnt Hsg   (Replaces: 131878410)				$ 820.03
6	131346600		Screw		Appelez-nous	-
26	5303279394		Seal-tub				$ 85.72
27	131784300		Washer-trans-brg Block-koyo		Appelez-nous	-
28	131784400		Spacer-trans Brg Block-koyo				$ 48.58
