SELECT A DIAGRAM

02 - Backguard


03 - Door Parts


04 - Cooktop Parts

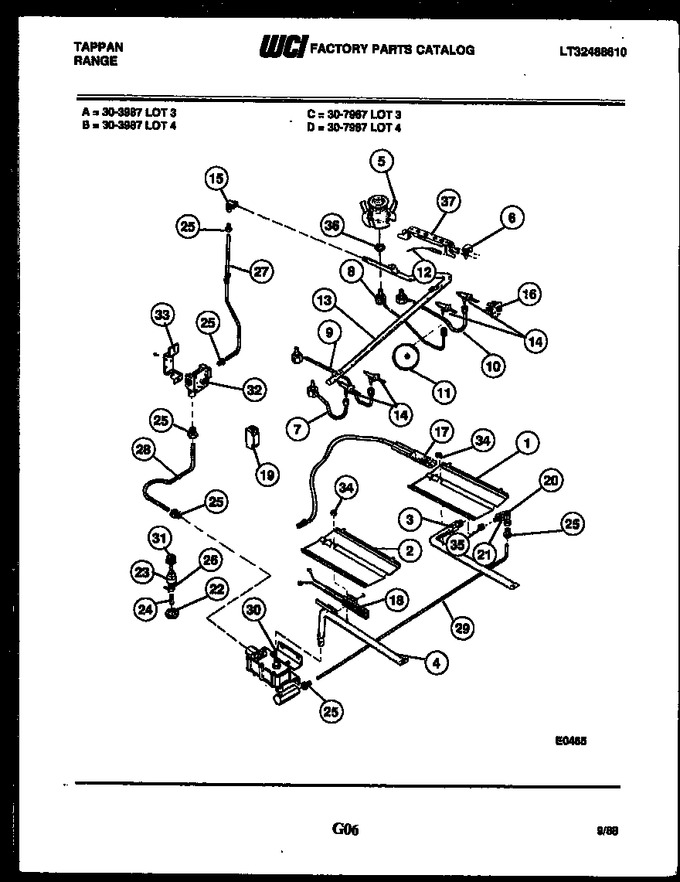

05 - Burner, Manifold And Gas Control


06 - Body Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131283		Baffle, Broil		Appelez-nous	-
2	3131284		Baffle-oven				$ 155.77
3	079T028P01		Burner, Broiler		Appelez-nous	-
4	3131290		Burner-oven		Appelez-nous	-
5	079T032S02		Burner, Top		Appelez-nous	-
6	612T119F01		Retainer, Igniter (4)		Appelez-nous	-
7	079T033H01		Burner Tube (lf)		Appelez-nous	-
8	079T033H02		Burner, Tube		Appelez-nous	-
9	079T033H03		Burner Tube, Left Rear		Appelez-nous	-
10	079T033H04		Burner, Tube, Right Front		Appelez-nous	-
11	247T074P01		Ferrule (4)		Appelez-nous	-
12	316T034P02		Igniter Top 50``		Appelez-nous	-
13	439T055P03		Manifold, Pipe		Appelez-nous	-
14	3131126		Valve 3 Pos, (4)		Appelez-nous	-
15	215T013P01		Elbow		Appelez-nous	-
16	3131580		Switch Ign.		Appelez-nous	-
17	316T023P12		Igniter, Broiler Burner (1)		Appelez-nous	-
18	3131300		Igniter, Oven		Appelez-nous	-
19	316T033P01		Igniter, Module		Appelez-nous	-
20	455T008P02		Mixer, Elbow		Appelez-nous	-
21	3131358		Hex Nut		Appelez-nous	-
22	3131309		Hex Nut, Fuse (1)		Appelez-nous	-
23	647T087P01		Seal ``o``ring		Appelez-nous	-
24	3131297		Fuse, Buss		Appelez-nous	-
25	3131261		Fitting, Loxit (6)		Appelez-nous	-
26	3131359		Recept Fuse		Appelez-nous	-
27	750T085H09		Tube Alum 3/8		Appelez-nous	-
28	3131109		Tube Alum 3/8		Appelez-nous	-
29	3131364		Tube-alum Valve/mixed		Appelez-nous	-
30	774T116P11		Valve, Safety-dual		Appelez-nous	-
31	3131292		Cap Fuse Recept		Appelez-nous	-
32	166T011P01		Control - Regul		Appelez-nous	-
33	3131110		Brkt Regul		Appelez-nous	-
34	479T069P03		Nut, 10-24 Hex (2)		Appelez-nous	-
35	499T015P08		Spud No 50		Appelez-nous	-
36	479T069P40		Nut, Special (4)		Appelez-nous	-
37	072T839F02		Bracket, Ignition		Appelez-nous	-
*18477	3051420		Rivet (4)		Appelez-nous	-
15A	3131148		Nut Cmprssn. (4) (non-illustrated)		Appelez-nous	-
30A	3131598		Washer, Repair (4) (non-illustrated)		Appelez-nous	-
36A	3131956		Spacer-baffle (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
