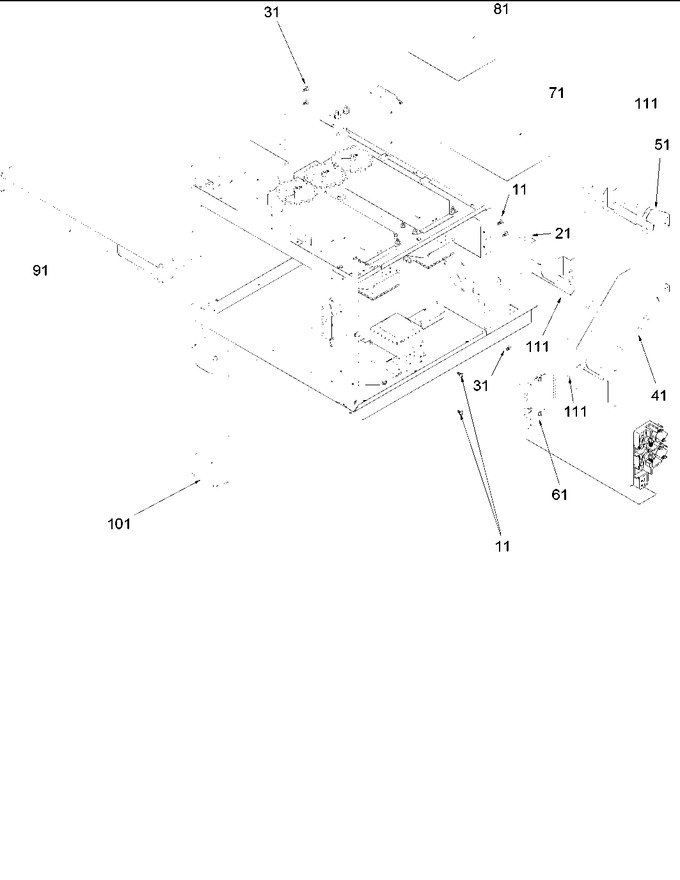

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	R0156937		Assy, Top Divider		Appelez-nous	-
41	R0156936		Assy, Bot Divider		Appelez-nous	-
51	R0156935		Assy, Rear Divider		Appelez-nous	-
61	12360506		Switch, Interlock		Appelez-nous	-
71	12160601		Shield-spill		Appelez-nous	-
81	12160602		Shield, Spill		Appelez-nous	-
91	R0156973		Assy, Touch Pnl- Top		Appelez-nous	-
101	R0156976		Assy, Touch Pnl- Side		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
