Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10908901Q Wrapper-oc (ss) Appelez-nous -
1 WP3388228 Screw Xxx   (Replaces: M0216703) Special Order $ 6.26

2 A3263904 Gasket Appelez-nous -
2 M0231617 Screw,tf Appelez-nous -
3 M0288213 Clip Appelez-nous -
3 M0249632 Screw, T F Appelez-nous -
3 10785608 Cover Light (ss) Appelez-nous -
4 M0249632 Screw, T F Appelez-nous -
5 10909001 Trim-oc (brushed) Appelez-nous -
5 M0249632 Screw, T F Appelez-nous -
6 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.00

7 R0156970 Assy, Access Panel (rear) Appelez-nous -
8 WP3388228 Screw Xxx   (Replaces: M0216703) Special Order $ 6.26

9 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

10 A3030301 Gasket (inch) Appelez-nous -
11 A3030330 Gasket,per Ft Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

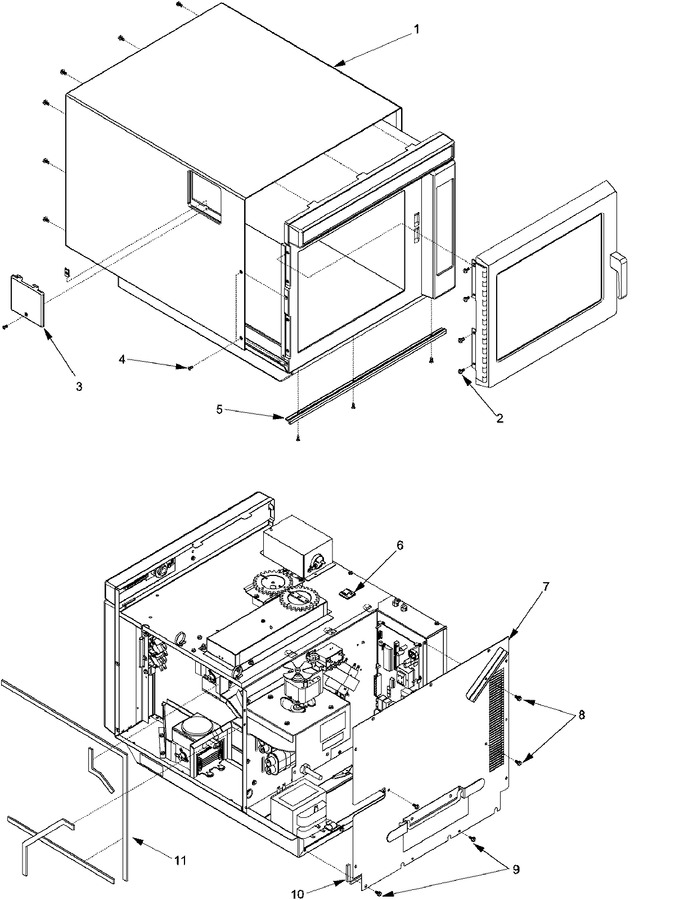

Diagram for DQ22HSI (BOM: P1326304M)
