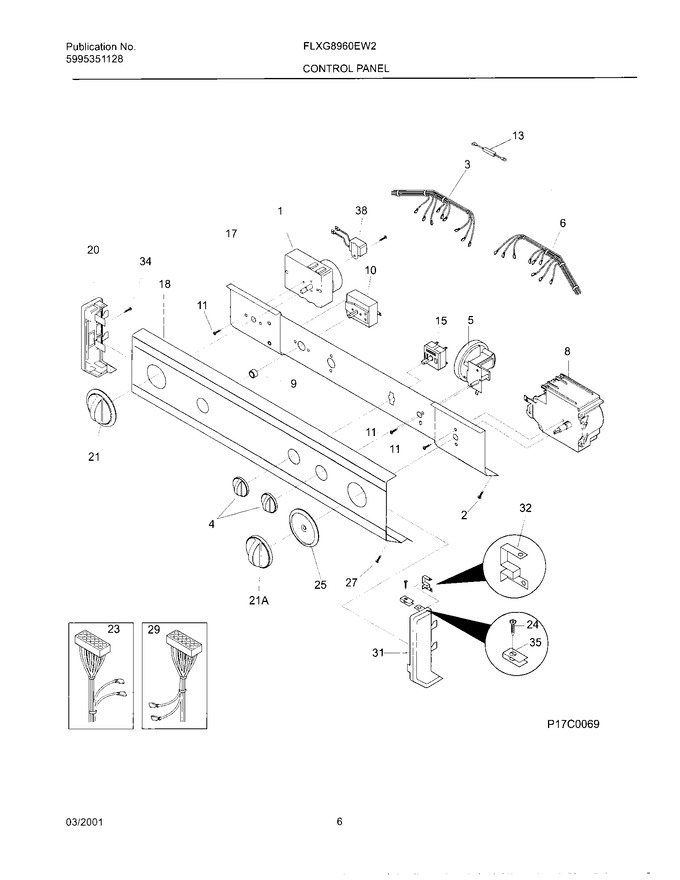

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131062400		Timer-dryer				$ 329.81
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131343300		Harness-dryer Cont.		Appelez-nous	-
4	131873401		Knob-rotary				$ 49.73
5	134422700		Switch-pressure 3/4 Hp   (Replaces: 131692100)			Immediately	$ 98.06
6	131998700		Harn-wshr-cont-w/temp Sw/w/ms				$ 192.41
8	131773900		Timer-washer		Appelez-nous	-
9	131111501		Button-start Switch,white				$ 13.79
10	131628900		Switch-push Start				$ 55.80
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
13	3205877		Resistor, 3.0k				$ 51.14
15	131620800		Switch-temperature		Appelez-nous	-
17	131983400		Brkt-cont Mtg Weld Push/start		Appelez-nous	-
18	131623000		Panel-control, White		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131977201		Knob-wht-lc Wsh Timer G1/r1				$ 70.85
21	131873304		Asmy-knob/ind   (Replaces: 131873301)			Immediately	$ 59.54
23	131848800		Harness-lcd Main Gas ``m``		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976801		Pntr-wht/blue Ind-lc Wshr R1				$ 43.16
27	131892100		Scr 6-20x.230 Pph B Pt		Appelez-nous	-
29	131778800		Harn-lwr Wshr		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
NI	131209800		Clamp-sw. Pressure				$ 65.92
NI	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
