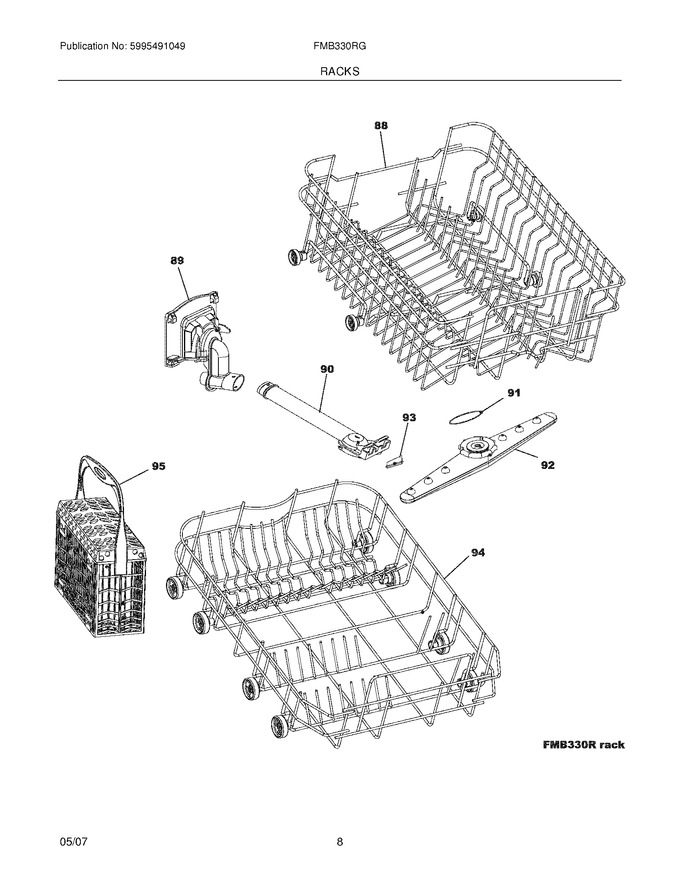

SELECT A DIAGRAM

01 - Cover


03 - Control Panel/door


05 - Tub


07 - Motor & Pump


09 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
88	5304525235		Rack Assembly,upper   (Replaces: 5304461016)				$ 356.99
89	5304461017		Dispenser,feeding ,upper				$ 48.91
90	5304461018		Pipe,sprayarm ,upper				$ 48.33
91	5304461019		Ring Nut,sprayarm ,upper				$ 47.71
92	5304461020		Sprayarm,upper				$ 48.88
93	5304461021		Block,sprayarm ,upper				$ 8.32
94	5304461022		Rack Assembly,lower				$ 185.59
95	5304461023		Basket,silverware			Immediately	$ 40.40

    View Diagram in Separate Window       Print Part List
