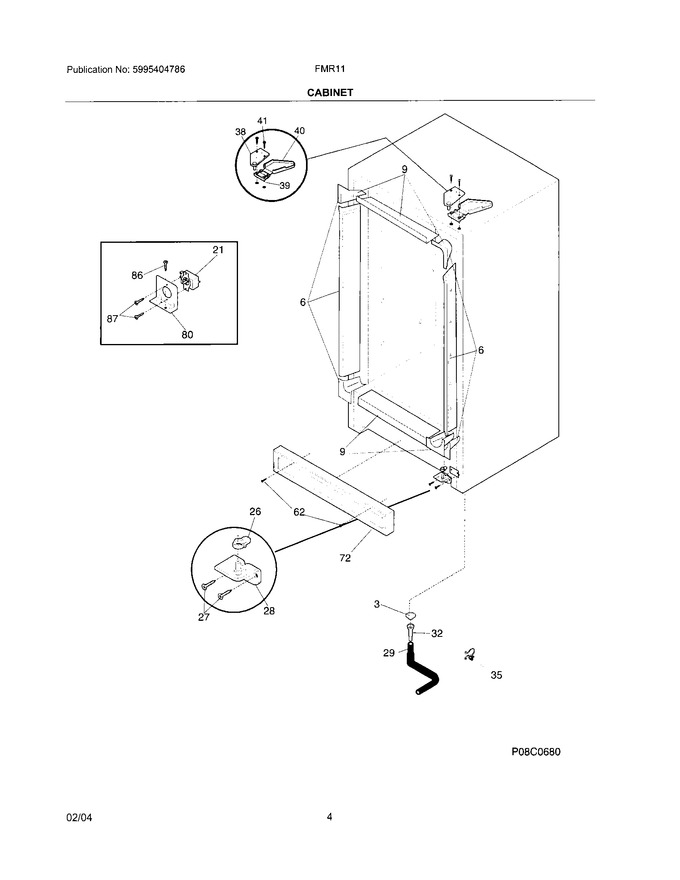

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604400		Breaker Kit W/corners		Appelez-nous	-
9	216603400		Breaker Kit W/corners,22.13`` Long ,top Or Bottom		Appelez-nous	-
21	216710600		Control-temperature				$ 114.08
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw,hinge Mtg ,10 (a) X 0.875 ,btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216629700		Clip		Appelez-nous	-
38	216808900		Hinge,plate ,top				$ 92.87
39	5303294372		Nut-insert,1/4-20 Unc ,hinge				$ 43.68
40	216809001		Cover-upper Hinge,black				$ 13.70
41	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg   (Replaces: 216850900)				$ 13.46
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
72	216294303		Grille/kickplate		Appelez-nous	-
80	216307500		Bracket,control		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
	09948773		Insulation, Drain Tube				$ 12.60
