SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

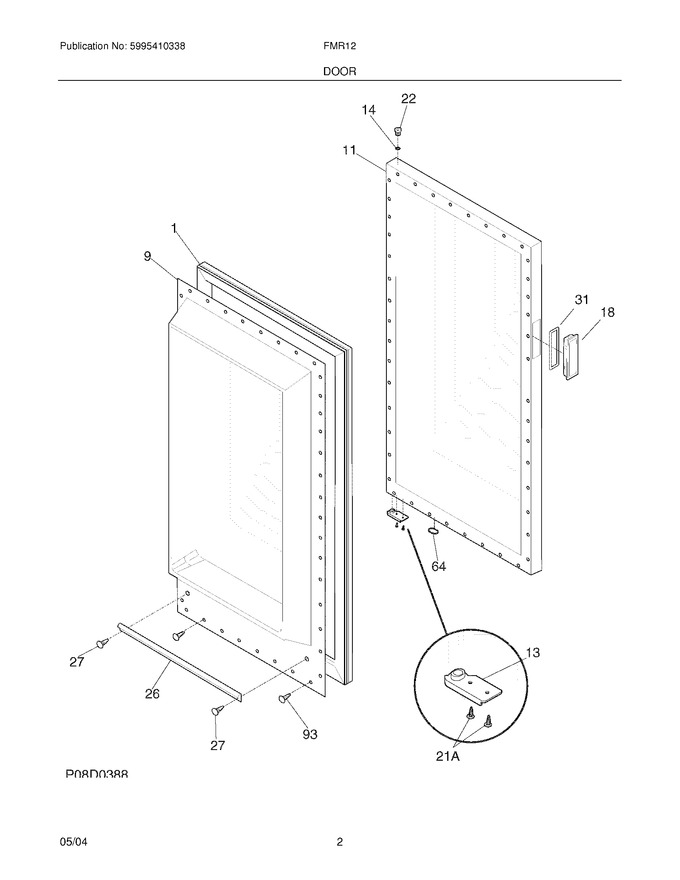

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216522316		Gasket-door				$ 180.76
9	216568700		Panel-inner Door,frzr		Appelez-nous	-
11	216565412		Panel-outer Door,black		Appelez-nous	-
13	216929101		Door Stop,black		Appelez-nous	-
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216140100		Handle,chrome		Appelez-nous	-
22	5303925197		Bearing,hinge ,top				$ 23.73
26	216524300		Gasket,secondary				$ 27.56
27	5303212828		Clip,panel Mtg				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
21A	154518001		Screw,door Stop ,10 (a) X 0.875 ,btm   (Replaces: 5303205738)				$ 10.54

    View Diagram in Separate Window       Print Part List
