SELECT A DIAGRAM

01 - Cover


03 - Door

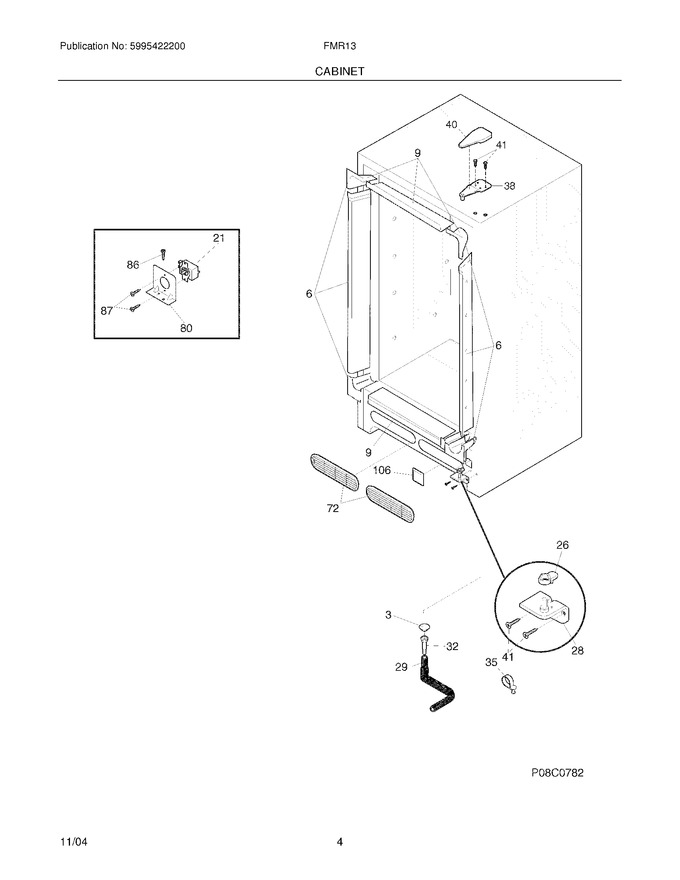

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604400		Breaker Kit W/corners		Appelez-nous	-
9	216603400		Breaker Kit W/corners,22.13`` Long ,top Or Bottom		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216629700		Clip		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	216809001		Cover-upper Hinge,black				$ 13.70
41	216954400		Screw,12-24 X.700 Hwh ,hinge Mtg.		Appelez-nous	-
72	216952701		Grille/guard,black ,(2)				$ 28.76
80	216307500		Bracket,control		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
106	216926300		Plug,square ,black ,base Front		Appelez-nous	-
F21	216710600		Control-temperature				$ 114.08
NI	09948773		Insulation, Drain Tube				$ 12.60

    View Diagram in Separate Window       Print Part List
