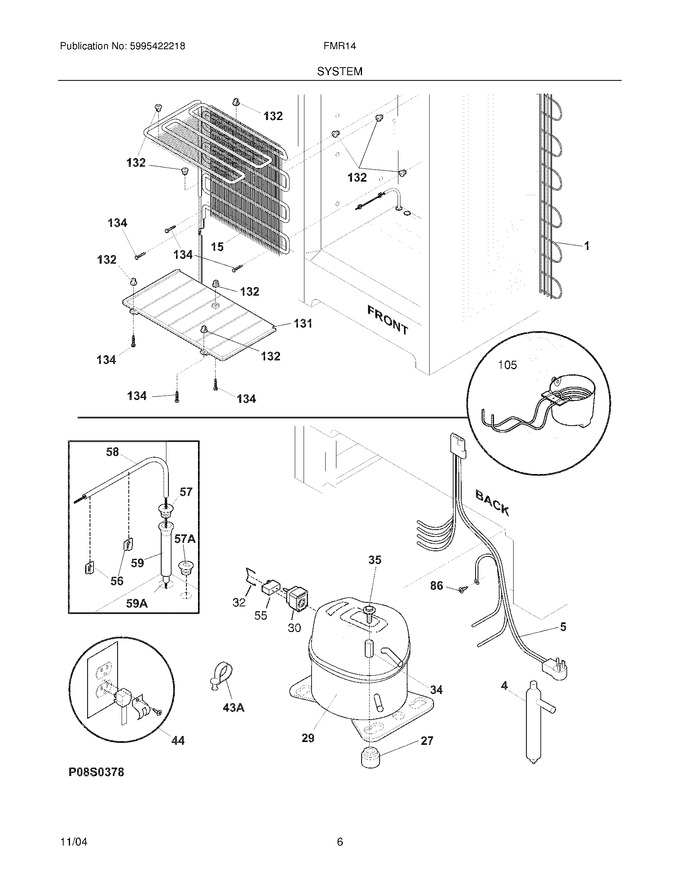

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954200		Controller,compressor ,5 Speed				$ 63.79
32	216954300		Clip,controller				$ 17.01
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
56	216611700		Clip,plastic ,temp Sensor Mtg ,snap-in		Appelez-nous	-
57	216694300		Plug-suction Line		Appelez-nous	-
58	216611600		Tube,control Well		Appelez-nous	-
59	216502500		Sleeve,suction Line				$ 10.85
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
105	216854002		Cup-drain		Appelez-nous	-
131	216701100		Pan-drain,evap Drip Pan		Appelez-nous	-
132	216225700		Grommet-spacer				$ 7.77
134	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
43A	216629700		Clip		Appelez-nous	-
57A	216711000		Plug,plug Evap		Appelez-nous	-
59A	216341800		Seal-cap		Appelez-nous	-
F1	5300123788		Condenser				$ 635.80
F15	216701200		Evaporator		Appelez-nous	-
F29	5304507767		Compressor,w/o Electricals   (Replaces: 216966300)				$ 726.41
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216964600		Harness-main		Appelez-nous	-
F55	218909912		Capacitor-run,220 Vac ,12 Microfarad			Immediately	$ 74.75
NI	05878556		Clip, Compressor Wire		Appelez-nous	-
NI	216533200		Wire-ground		Appelez-nous	-
NI	216701500		Heat Exchanger		Appelez-nous	-
NI	5303208622		Clip Grounding		Appelez-nous	-
