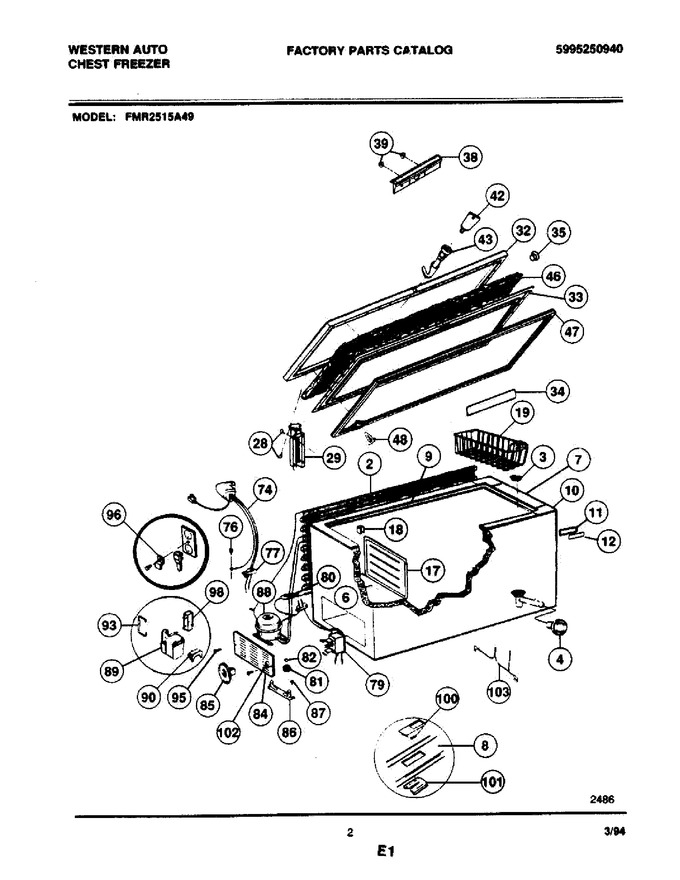

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303280307 | Condenser (not Original Equipment-service Replacement On |
|
$ 640.71 | |||||
| 3 | 216208300 | Plug-drain Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 6 | 08016808 | Grommet |
|
- | |||||
| 7 | 216110800 | Breaker Ends |
|
- | |||||
| 8 | 216111600 | Breaker Front |
|
- | |||||
| 9 | 216111000 | Breaker Rear |
|
- | |||||
| 10 | 216110700 | Breaker Corners |
|
$ 28.45 | |||||
| 11 | 215366301 | Frame-nameplate |
|
- | |||||
| 12 | 216284703 | Insert Nameplate |
|
- | |||||
| 18 | 5306594584 | Supports |
|
$ 19.80 | |||||
| 19 | 216080300 | Basket |
|
- | |||||
| 28 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 29 | 297321900 | Hinge Assy (Replaces: 216035200) |
|
$ 90.01 | |||||
| 32 | 216129912 | Lid-panel-white |
|
- | |||||
| 33 | 216057804 | Panel-inner Lid, White |
|
$ 140.44 | |||||
| 34 | 5303296969 | Light Shield |
|
- | |||||
| 35 | 216141101 | Plug |
|
$ 2.57 | |||||
| 38 | 216205001 | Handle, White |
|
- | |||||
| 39 | 5309948647 | Fastener |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5303925107 | Lock-complete |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 216481211 | Gasket Lid-white (Replaces: 216079900) |
|
$ 204.03 | |||||
| 48 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 74 | 216158400 | Wiring Harn W/pwr Cord |
|
- | |||||
| 76 | 216036600 | Screw-ground Wire |
|
- | |||||
| 77 | 5303212614 | Clip Wires |
|
$ 2.88 | |||||
| 79 | 216280500 | Control-temperature |
|
- | |||||
| 80 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 215175000 | Grommet-compressor |
|
- | |||||
| 82 | 216232700 | Washer-flat |
|
- | |||||
| 84 | 216022700 | Access Panel |
|
- | |||||
| 85 | 216034505 | Knob-control |
|
- | |||||
| 86 | 5303212615 | Support, Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 216138400 | Compressor |
|
- | |||||
| 89 | 216008900 | Relay |
|
- | |||||
| 90 | 5303206885 | Overload |
|
$ 119.23 | |||||
| 93 | 216147800 | Clamp Cover |
|
- | |||||
| 95 | 5303302714 | Screw-access Panel |
|
- | |||||
| 96 | 08016777 | Retainer Pwr Cord |
|
- | |||||
| 98 | 216336300 | Run Capacitor |
|
$ 71.51 | |||||
| 100 | 5303208488 | Latch |
|
- | |||||
| 101 | 216080800 | Support-latch |
|
- | |||||
| 102 | 5303208663 | Plug-indicator |
|
- | |||||
| 103 | 5303294326 | Wire-ground |
|
- | |||||
| 216056400 | Clip Compr |
|
- |
