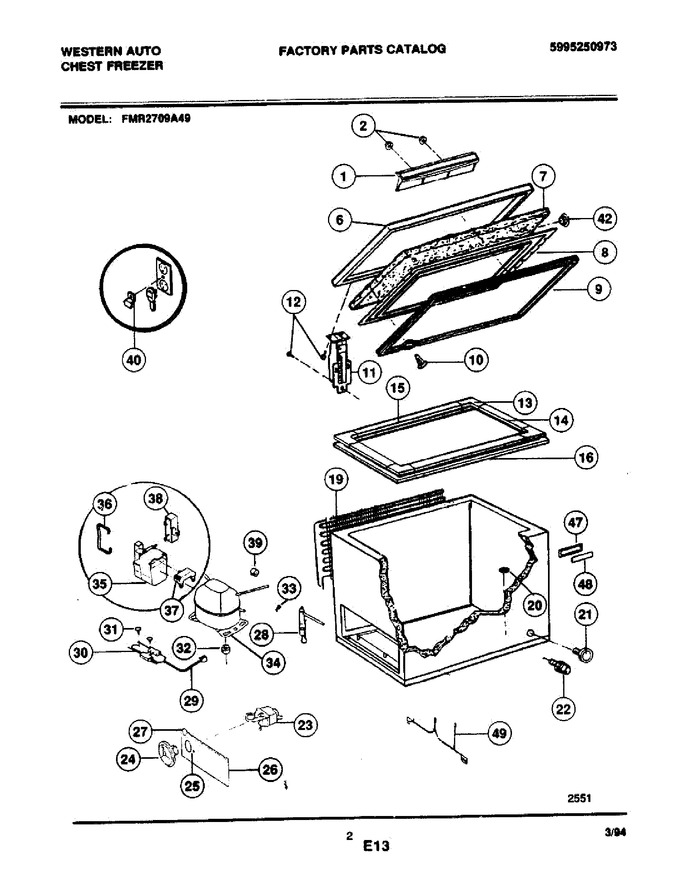

03 - Door/cabinet/system


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216205000		Handle				$ 32.78
2	5309948647		Fastener, Handle		Appelez-nous	-
6	216117913		Panel-outer Door\lid,white		Appelez-nous	-
7	5303207270		Insulation		Appelez-nous	-
8	216061802		Panel-inner-white				$ 198.24
9	3200692		Gasket-white		Appelez-nous	-
10	5303212828		Clip,panel				$ 16.63
11	216119201		Hinge		Appelez-nous	-
12	5309950602		Screw Hinge				$ 5.30
13	216105500		Breaker-corner				$ 46.83
14	216105600		Breaker-side		Appelez-nous	-
15	216117500		Breaker-rear		Appelez-nous	-
16	216117500		Breaker-hinge/front, White		Appelez-nous	-
19	5300120781		Condenser (not Original Equipment-service Replacement On		Appelez-nous	-
20	5306593887		Plug-drain		Appelez-nous	-
21	5300128045		Plug-drain		Appelez-nous	-
22	06594053		Adapter, Hose		Appelez-nous	-
23	5304496560		Control Temperaturer   (Replaces: 5303212610)				$ 49.62
24	216034505		Knob-control		Appelez-nous	-
25	5303208663		Plug-indicator		Appelez-nous	-
26	216108300		Panel-access		Appelez-nous	-
27	5309950877		Retainer		Appelez-nous	-
28	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
29	216138300		Harness		Appelez-nous	-
30	216022800		Screw		Appelez-nous	-
31	216036600		Screw-ground		Appelez-nous	-
32	215175000		Grommet		Appelez-nous	-
33	5303212614		Clip Harness				$ 2.88
34	216138400		Compressor		Appelez-nous	-
35	216008900		Relay		Appelez-nous	-
36	216147800		Clamp		Appelez-nous	-
37	5303206885		Overload				$ 119.23
38	5304464438		Run Capacitor   (Replaces: 216236300)			Immediately	$ 35.38
39	216056400		Clip		Appelez-nous	-
40	08016777		Clamp-power Cord (not Original Equipment-customer Purcha		Appelez-nous	-
42	216141101		Plug-hole Lid				$ 2.57
47	215366301		Frame-nameplate		Appelez-nous	-
48	216284703		Insert Nameplate		Appelez-nous	-
49	216154900		Wire, Ground		Appelez-nous	-
	08037851		Screw				$ 3.57
