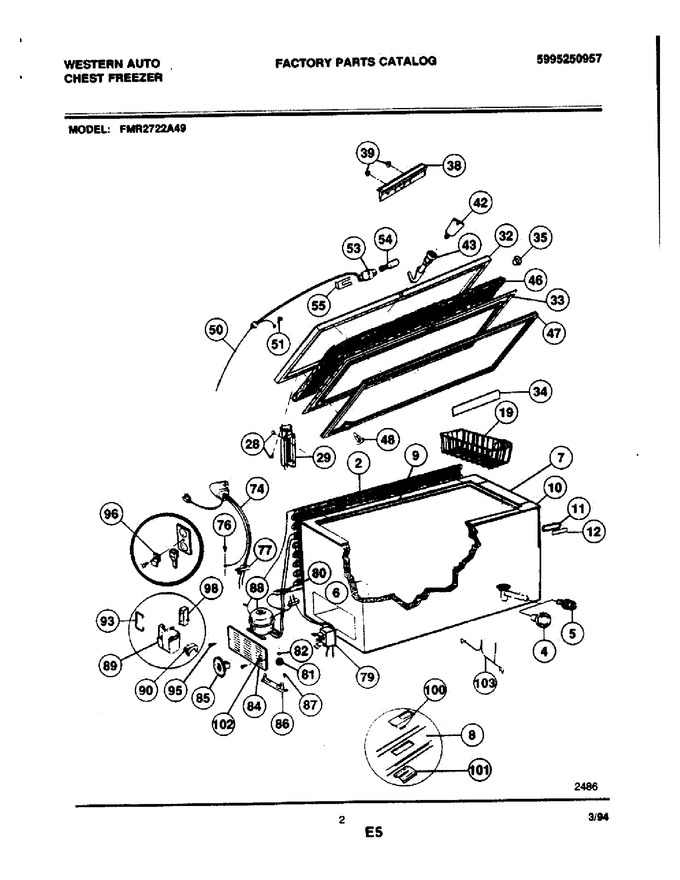

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300300173 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 216269500 | Hose Adapter (not Original Equipment-customer Purchase O |
|
$ 14.81 | |||||
| 6 | 08016808 | Grommet |
|
- | |||||
| 7 | 216110800 | Breaker Ends |
|
- | |||||
| 8 | 216111900 | Breaker Front |
|
- | |||||
| 9 | 216111300 | Breaker Rear |
|
- | |||||
| 10 | 216110700 | Breaker Corners |
|
$ 28.45 | |||||
| 11 | 215366301 | Frame-nameplate |
|
- | |||||
| 12 | 216284703 | Insert Nameplate |
|
- | |||||
| 19 | 216080300 | Basket |
|
- | |||||
| 28 | 5309950602 | Screw |
|
$ 5.30 | |||||
| 29 | 216035500 | Hinge |
|
- | |||||
| 32 | 216130207 | Lid-panel-white |
|
- | |||||
| 33 | 216060404 | Panel-inner Lid |
|
- | |||||
| 34 | 5303296969 | Light Shield |
|
- | |||||
| 35 | 216141101 | Plug |
|
$ 2.57 | |||||
| 38 | 216205001 | Handle, White |
|
- | |||||
| 39 | 5309948647 | Fastener |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5303925107 | Lock-complete |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 216080200 | Gasket, Lid, White |
|
- | |||||
| 48 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 50 | 216040000 | Harness-lid |
|
- | |||||
| 51 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 53 | 216039700 | Socket-light |
|
- | |||||
| 54 | 5304517886 | Light Bulb (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 55 | 5306599968 | Plate-light Switch |
|
- | |||||
| 74 | 216089500 | Wiring Harness W/ Pwr Cord |
|
- | |||||
| 76 | 216036600 | Screw-ground |
|
- | |||||
| 77 | 5303212614 | Clip Wires |
|
$ 2.88 | |||||
| 79 | 5308013601 | Control Temp |
|
- | |||||
| 80 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 215175000 | Grommet-compressor |
|
- | |||||
| 82 | 216232700 | Washer-flat |
|
- | |||||
| 84 | 216022700 | Access Panel |
|
- | |||||
| 85 | 216034505 | Knob-control |
|
- | |||||
| 86 | 5303212615 | Support, Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 216128300 | Compressor |
|
- | |||||
| 89 | 216008900 | Relay |
|
- | |||||
| 90 | 216128400 | Overload |
|
- | |||||
| 93 | 216158300 | Clamp Cover |
|
- | |||||
| 95 | 5303302714 | Screw-access Panel |
|
- | |||||
| 96 | 08016777 | Retainer, Power Cord (not Original Equipment. Customer |
|
- | |||||
| 98 | 5304464438 | Run Capacitor (Replaces: 216236200) |
|
Immediately | $ 35.38 | ||||
| 100 | 5303208488 | Latch |
|
- | |||||
| 101 | 216080800 | Support, Lock |
|
- | |||||
| 102 | 5303208663 | Plug-indicator |
|
- | |||||
| 103 | 5303294326 | Wire-ground |
|
- | |||||
| 216056400 | Clip Compr |
|
- |
