Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 216176900 Gasket-door,black Appelez-nous -
8 5300091170 Reinforcement, Door Stop Appelez-nous -
9 216063600 Panel-inner Door Appelez-nous -
11 216011314 Panel Door Appelez-nous -
13 08016354 Door Stop Special Order $ 36.07

14 5303313518 Washer, Sealing Appelez-nous -
18 216140100 Handle,chrome Appelez-nous -
22 5303925197 Bearing Special Order $ 23.73

25 216022800 Screw Appelez-nous -
26 5303300817 Gasket-secondary Appelez-nous -
27 5303212828 Screw, Panel Special Order $ 16.63

31 08009392 Gasket, White Appelez-nous -
51 5303286877 Wire-door Adjustmnt Appelez-nous -
52 05879859 Bracket Appelez-nous -
93 216858001 Screw   (Replaces: 5303161215) In-Stock Immediately $ 10.85

14A 5303307087 Washer Appelez-nous -
21A 08005520 Screw-door Stop Appelez-nous -
22A 5303210403 Bearing Appelez-nous -
25A 216365400 Screw, Adj Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

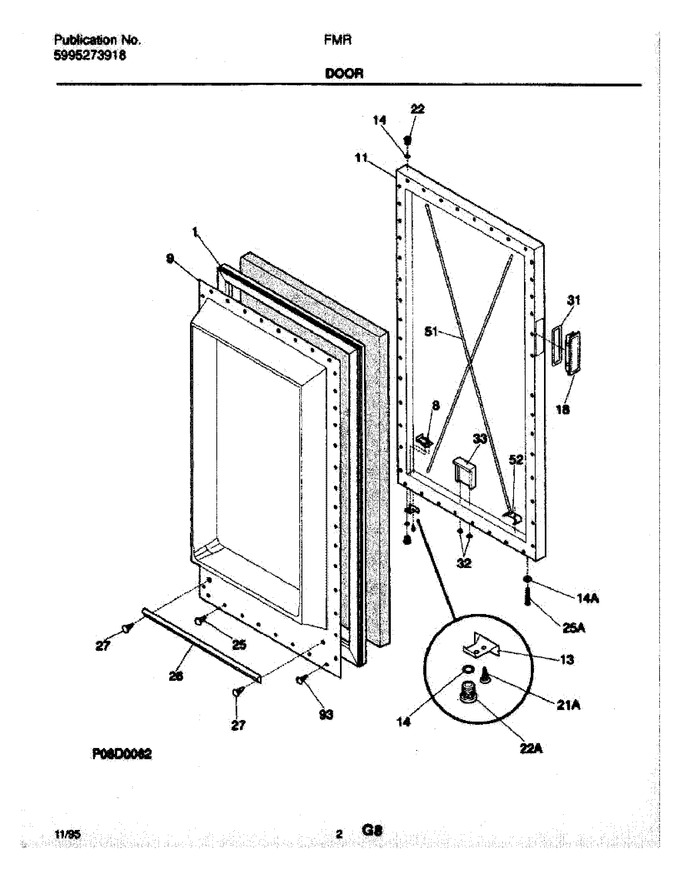

Diagram for FMR3
