SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet/control/shelves


07 - System

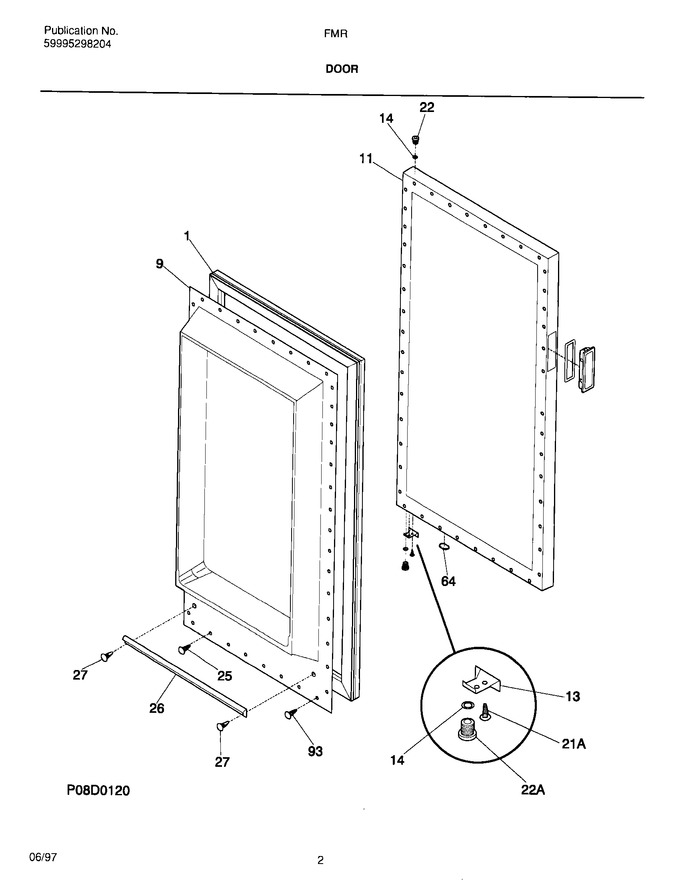

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216176900		Gasket-door,black		Appelez-nous	-
9	216063600		Panel-inner Door		Appelez-nous	-
11	216411302		Panel-outer Door Assy,w\handle		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	5303300817		Gasket-secondary		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
64	216403700		Plug-bottom, Base Door				$ 58.12
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
21A	08005520		Screw-door Stop		Appelez-nous	-
22A	5303210403		Bearing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
