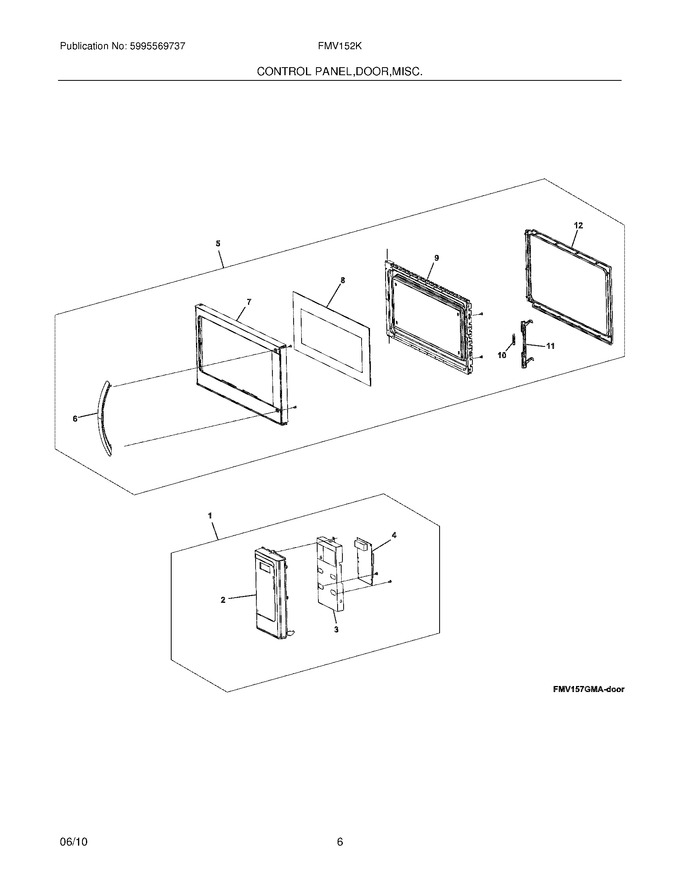

05 - Control Panel,door,miscellaneous
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304464130 | Frame,control Panel ,stainless |
|
$ 272.37 | |||||
| 3 | 5304464065 | Panel,control Mount ,bracket |
|
$ 68.04 | |||||
| 5 | 5304537784 | Door Assembly,stainless (Replaces: 5304472724) |
|
$ 348.64 | |||||
| 6 | 5304536387 | Handle Assembly,door ,black (Replaces: 5304472481) |
|
$ 22.22 | |||||
| 7 | 5304464252 | Panel,outer Door ,stainless |
|
$ 249.53 | |||||
| 8 | 5304464067 | Panel,glass ,black ,outer Door |
|
Immediately | $ 138.09 | ||||
| 9 | 5304472444 | Panel,inner Door ,black |
|
$ 280.49 | |||||
| 10 | 5304521953 | Spring,door Latch (Replaces: 5304464069) |
|
$ 7.23 | |||||
| 12 | 5304509640 | Choke Cover,inner Door (Replaces: 5304464071) |
|
$ 50.61 | |||||
| F1 | 5304472722 | Control Assembly,stainless |
|
$ 373.67 | |||||
| F11 | 4056021605 | Latch,door (Replaces: 5304464070) |
|
Immediately | $ 3.69 | ||||
| F4 | 5304503187 | Control Board,printed Circuit (Replaces: 5304472467) |
|
$ 494.48 |
