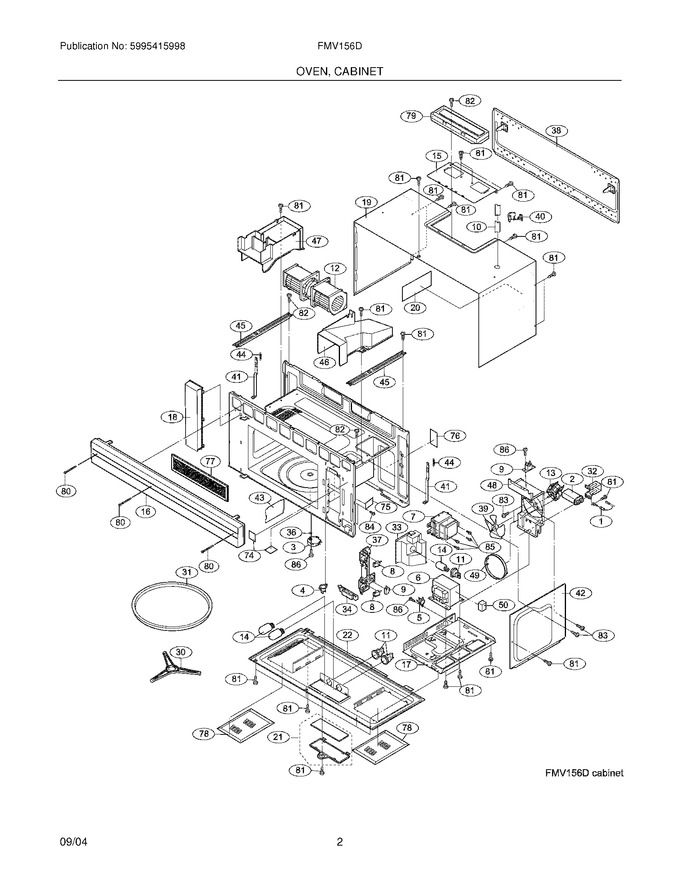

03 - Oven/cabinet


05 - Control Panel/door/misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5304440031		Lamp,incandescent ,20 W ,(3)			Immediately	$ 12.85
15	5304441849		Plate,rear Stay		Appelez-nous	-
16	5304498733		Grille,exhaust Louver ,black   (Replaces: 5304441850)				$ 296.59
17	5304441853		Base,transformer Mtg ,right Side		Appelez-nous	-
18	5304441855		Panel,front Trim ,stainless Steel ,left Side				$ 221.24
19	5304441858		Casing,wrapper ,black ,outer Cabinet				$ 260.77
20	5304441861		Wiring Diagram,schematic		Appelez-nous	-
21	5304440242		Lens/frame Assy,oven Lamp		Appelez-nous	-
22	5304441862		Cover,unit Base ,cab Bottom		Appelez-nous	-
30	5304467717		Support Assy,turntable   (Replaces: 5304440284)				$ 122.18
31	5304537401		Tray,turntable ,glass   (Replaces: 5304441872)				$ 125.79
32	5304441873		Retainer,capacitor Strap		Appelez-nous	-
33	5304441874		Duct,magnetron				$ 28.88
34	5304485407		Lever,door Release   (Replaces: 5304440841)				$ 63.36
36	5304440288		Bushing,motor Shaft ,turntable				$ 16.45
37	5304440289		Latch Hook				$ 102.11
38	5304441833		Bracket,unit Mtg Plate ,rear				$ 234.31
40	5303319605		Bushing,power Cord				$ 45.73
41	5304441875		Lever,unit Mounting ,release				$ 28.77
42	5304441876		Duct,hood Intake ,right Side		Appelez-nous	-
43	5304440845		Cover,waveguide				$ 108.96
44	5304440316		Spring,door Latch			Immediately	$ 61.00
45	5304441877		Support,chassis		Appelez-nous	-
46	5304441878		Duct,hood Intake ,right Side		Appelez-nous	-
47	5304441879		Duct,exhaust Hood ,left Side		Appelez-nous	-
48	5304441880		Duct,cooling Fan		Appelez-nous	-
49	5304441881		Ring,fan Orifice				$ 118.34
50	5304441882		Cushion,transformer Pad		Appelez-nous	-
74	5304441900		Label,caution-dhhs		Appelez-nous	-
75	5304440334		Label,caution-monitor		Appelez-nous	-
76	5304440333		Label,caution-dhhs		Appelez-nous	-
77	5304441901		Filter,inside Exhaust ,charcoal		Appelez-nous	-
78	5303319568		Filter-grease, (2)			Immediately	$ 37.52
79	5304464343		Damper Assy,exhaust   (Replaces: 5304440283)				$ 60.48
80	5304441378		Screw,vent Grille ,black ,(3)   (Replaces: 5303319640)				$ 15.90
81	5304440340		Screw,4mm X 12mm		Appelez-nous	-
82	5303318767		Screw,4mm X 12mm		Appelez-nous	-
83	5304440872		Screw,4mm X 8mm		Appelez-nous	-
84	5303319641		Screw				$ 12.76
85	5303319636		Screw		Appelez-nous	-
86	5303319633		Screw,3mm X 8mm		Appelez-nous	-
F1	5304441844		Rectifier,high Voltage		Appelez-nous	-
F10	5304440028		Power Cord,electric				$ 119.07
F11	5303319561		Receptacle,lamp Socket ,oven				$ 61.45
F12	5304441847		Motor,hood Fan				$ 450.87
F13	5304441848		Motor,cooling Fan				$ 162.38
F2	5304440342		Capacitor,high Voltage		Appelez-nous	-
F3	5304440021		Motor,turntable				$ 82.64
F39	5304440843		Fan Blade,cooling Fan				$ 37.75
F4	5304440032		Thermal Cutout,oven Cavity ,n.c. 145 Deg C				$ 26.99
F5	5304440023		Thermal Cutout,hood ,n.o.60 Deg C				$ 58.13
F6	5304441845		Transformer,power		Appelez-nous	-
F7	5304441846		Magnetron				$ 417.01
F8	5304493153		Relay/switch Assy,sec. Interlock ,door Sense Sw.   (Replaces: 5304440026)			Immediately	$ 83.38
F9	5304468224		Switch Kit,monitor ,with Ct Fuse   (Replaces: 5304440027)			Immediately	$ 83.14
