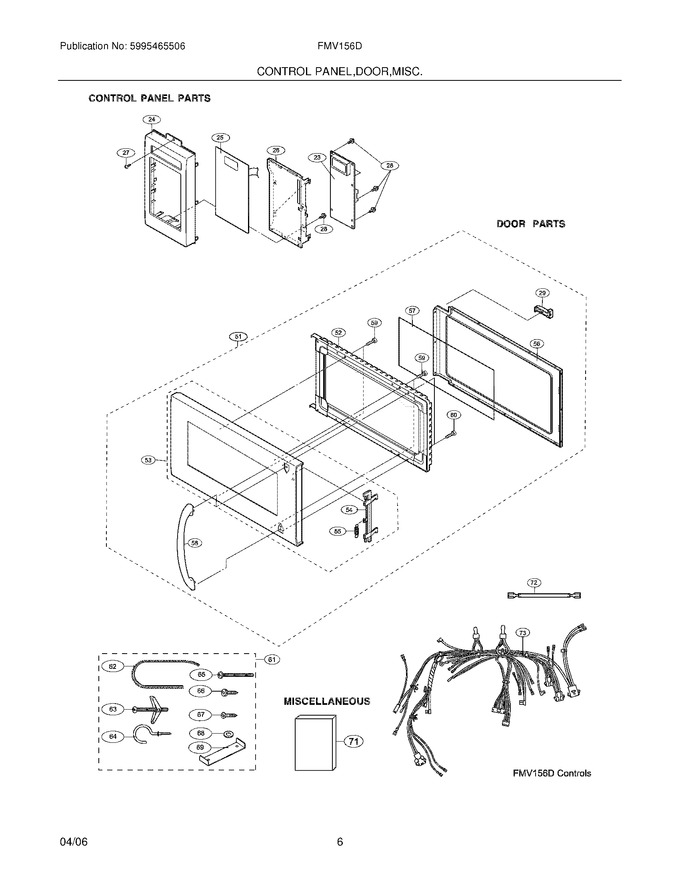

05 - Control Panel/door/misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	5304441867		Frame,control Panel ,white				$ 209.53
26	5304440281		Panel,control Mount				$ 33.39
27	5303319584		Screw,control Panel ,3mm X 10mm		Appelez-nous	-
28	5304440282		Screw,control Board ,3mm X 10mm		Appelez-nous	-
29	5304441871		Door Stop				$ 33.55
51	5304441886		Door Assy,white ,w/handle				$ 317.84
52	5304441889		Panel,inner Door ,white				$ 225.33
53	5304441892		Frame,outer Door ,white		Appelez-nous	-
54	5304441893		Latch,door			Immediately	$ 48.91
55	5304440316		Spring,door Latch			Immediately	$ 61.00
56	5304441894		Frame,choke Cover ,inner Door				$ 82.37
57	5304440860		Seal,door ,film				$ 63.09
58	5304440324		Handle,door ,white				$ 272.11
59	5304451561		Screw,4mm X 8mm   (Replaces: 5303319634)				$ 16.63
60	5304441895		Screw		Appelez-nous	-
61	5304441832		Hardware,installation ,kit				$ 80.75
62	5303318761		Sleeve,power Cord ,grommet				$ 25.05
63	5303318762		Screw,toggle				$ 11.71
64	5303322979		Hook,screw-in ,cord Holder		Appelez-nous	-
65	5304453895		Screw,5mm X 60mm   (Replaces: 5303318764)				$ 16.68
66	5303318767		Screw,4mm X 12mm		Appelez-nous	-
67	5303318765		Screw,wood ,5mm X 35 Mm ,(6)		Appelez-nous	-
68	5303318766		Washer,flat ,30mm ,(2)				$ 19.74
69	5304441896		Bracket,scale Plate				$ 11.39
71	5304441897		Template,installation ,top				$ 18.64
72	5304441898		Wire,high Voltage-a		Appelez-nous	-
73	5304451820		Wiring Harness,main		Appelez-nous	-
F23	5304441863		Control Board,printed Circuit				$ 442.37
F25	5304441870		Switch,touch Pad ,white				$ 203.23
