SELECT A DIAGRAM

01 - Cover


03 - Oven/cabinet

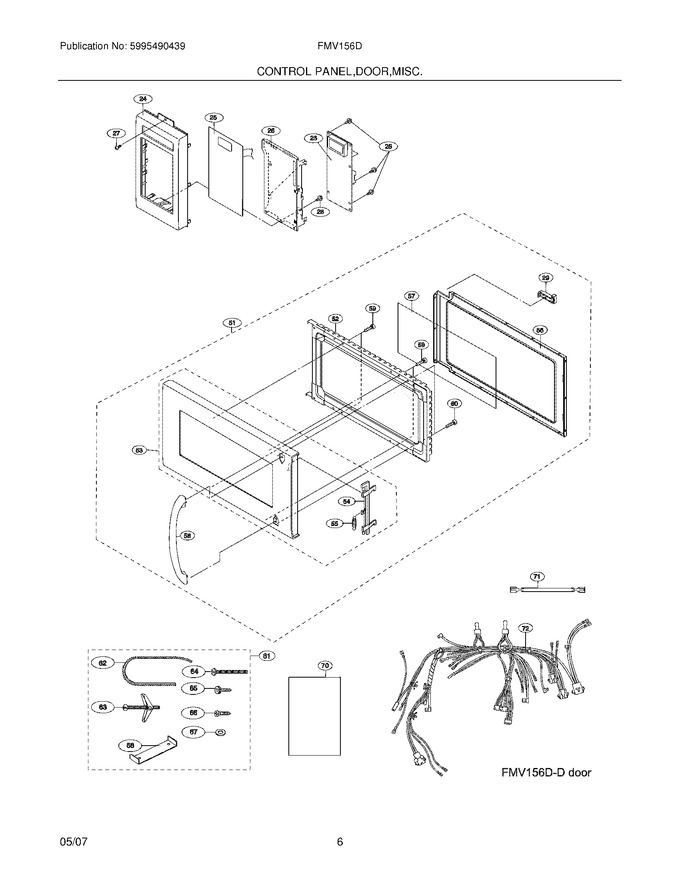

05 - Control Panel/door/misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	5304441867		Frame,control Panel ,white				$ 209.53
26	5304440281		Panel,control Mount				$ 33.39
27	5304458568		Screw		Appelez-nous	-
28	5304456930		Screw		Appelez-nous	-
29	5304441871		Door Stop				$ 33.55
51	5304461268		Door Assy,white ,w/handle				$ 267.89
52	5304441889		Panel,inner Door ,white				$ 225.33
53	5304461270		Frame,outer Door ,white		Appelez-nous	-
54	5304440314		Latch,door			Immediately	$ 51.13
55	5304440316		Spring,door Latch			Immediately	$ 61.00
56	5304441894		Frame,choke Cover ,inner Door				$ 82.37
57	5304440860		Seal,door ,film				$ 63.09
58	5304440324		Handle,door ,white				$ 272.11
59	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
60	5304458213		Screw,4 Mm X 12 Mm		Appelez-nous	-
61	5304461272		Hardware,installation ,kit				$ 41.50
62	5303319605		Bushing,grommet ,power Cord				$ 45.73
63	5303318762		Screw,toggle				$ 11.71
64	5304453895		Screw,5mm X 85mm				$ 16.68
65	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
66	5304453723		Screw,5mm X 35mm				$ 13.28
67	5304453724		Washer				$ 12.68
68	5304441896		Bracket,scale Plate				$ 11.39
70	5304458571		Template,installation ,top/wall				$ 26.69
71	5304441898		Wire,high Voltage-a		Appelez-nous	-
72	5304451820		Wiring Harness,main		Appelez-nous	-
F23	5304441863		Control Board,printed Circuit				$ 442.37
F25	5304441870		Switch,touch Pad ,white				$ 203.23

    View Diagram in Separate Window       Print Part List
