Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5300123788 Condenser Special Order $ 635.80

4 5303305677 Drier, Filter   (Replaces: 216099900) In-Stock Immediately $ 31.67

5 3200801 Harness-wire Appelez-nous -
10 216377500 Heater-drain Pan Assy Appelez-nous -
27 216498900 Grommet,compressor   (Replaces: 5308002681) Special Order $ 13.01

29 5304443412 Compressor, Service   (Replaces: 5303925314) Special Order $ 856.23

30 216347700 Starter, Ptc Appelez-nous -
31 216100105 Overload Protector Special Order $ 137.92

34 5306594529 Sleeve-compressor Special Order $ 10.34

35 5303272328 Screw, Compressor Special Order $ 10.34

43 09950610 Clip Appelez-nous -
44 08016777 Clamp, Pwr Cord Assy Appelez-nous -
53 216347800 Cover, Compressor Appelez-nous -
86 216036600 Screw Appelez-nous -
5303208622 Clip Grounding Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

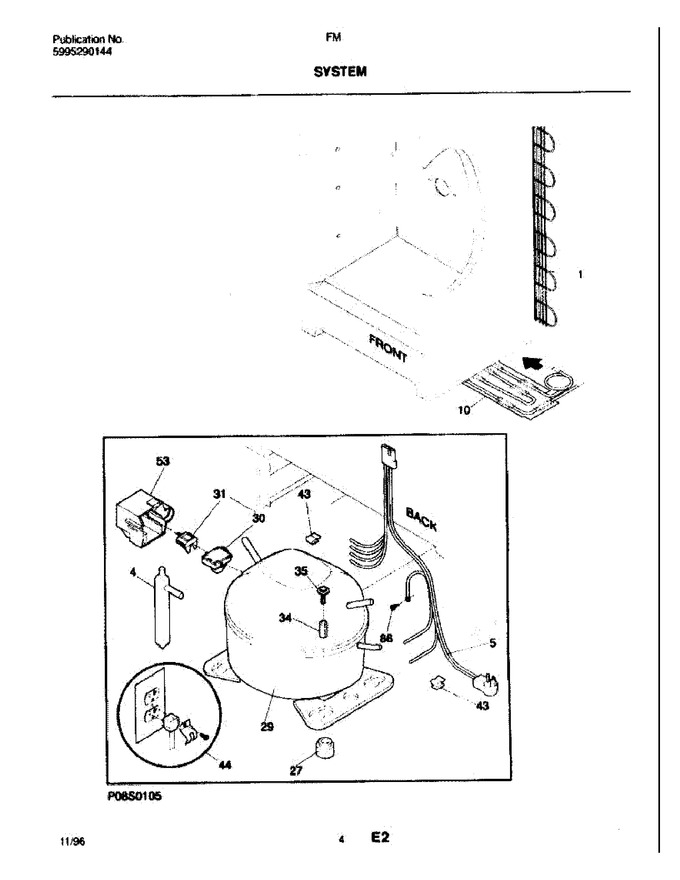

Diagram for FMW1
