01 - Control Panel
02 - Detergent Cup
03 - Door Parts
04 - Frame Parts
05 - Rack
06 - Tub
SELECT A DIAGRAM
New Model Search:

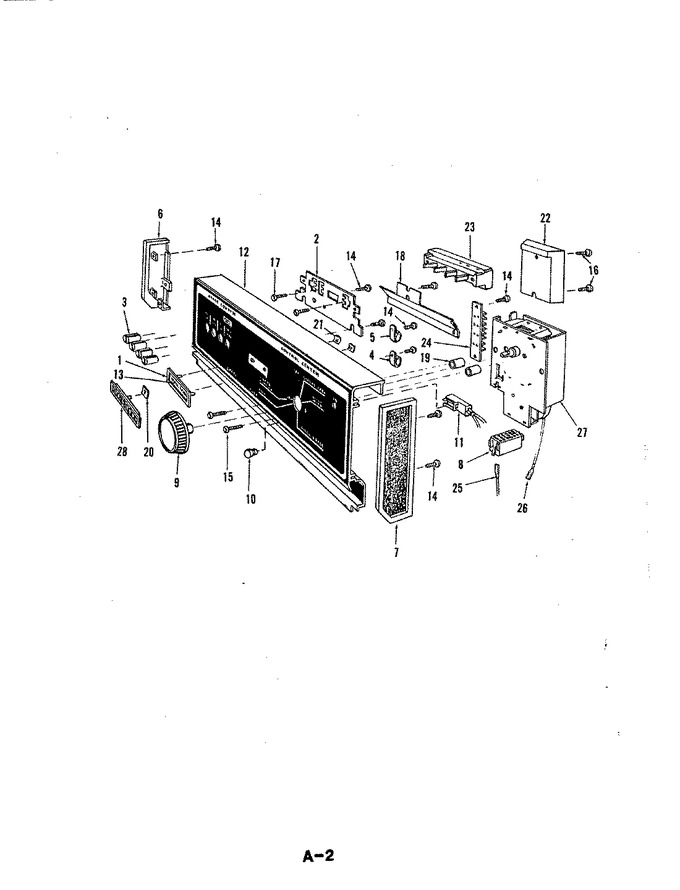

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 808713 | Bezel |
|
- | |||||
| 2 | 806594 | Switch Bracket |
|
- | |||||
| 3 | 807091 | Push Button |
|
- | |||||
| 4 | 808442 | Wire Clamp |
|
- | |||||
| 5 | W10833902 | Clamp (Replaces: 805584) |
|
$ 9.89 | |||||
| 6 | 808811 | Lh End Cap |
|
- | |||||
| 7 | 808810 | Rh End Cap |
|
- | |||||
| 8 | 808231 | Rh Timer Housng |
|
- | |||||
| 9 | 807094 | Timer Knob |
|
- | |||||
| 10 | 805664 | Red Lens |
|
- | |||||
| 11 | 808711 | Light Asm |
|
- | |||||
| 12 | 809002 | Console Panel |
|
- | |||||
| 13 | 808721 | Nameplate, Mc |
|
- | |||||
| 13 | 808720 | Nameplate |
|
- | |||||
| 14 | 806943 | Screw |
|
- | |||||
| 15 | 808422 | Screw |
|
- | |||||
| 16 | 806894 | Screw |
|
- | |||||
| 17 | 807141 | Screw |
|
- | |||||
| 18 | 808574 | Shield |
|
- | |||||
| 19 | 808424 | Spacer |
|
- | |||||
| 20 | 808475 | Speednut |
|
- | |||||
| 21 | 807970 | Speednut |
|
- | |||||
| 22 | 807425 | Splash Pan |
|
- | |||||
| 23 | 808724 | Switch |
|
- | |||||
| 24 | 808483 | Terminal Board |
|
- | |||||
| 25 | 808333 | Terminal |
|
- | |||||
| 26 | 808334 | Terminal |
|
- | |||||
| 27 | 5300808671 | Timer (Replaces: 808671) |
|
- | |||||
| 28 | 808477 | Vent Trim |
|
- |
