02 - Backguard
03 - Cooktop Parts
04 - Drawer Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:

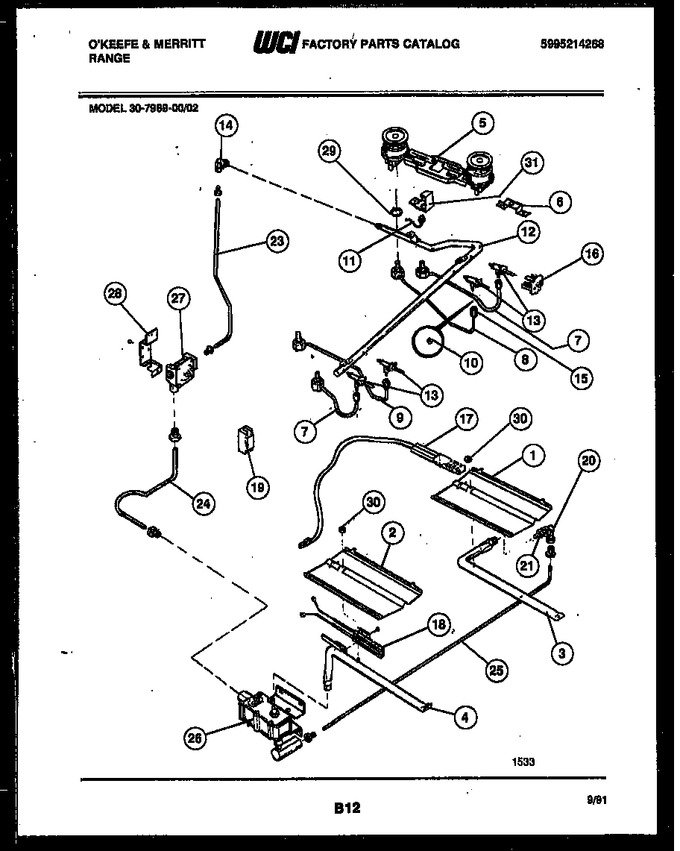

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210379 | Baffle, Broil |
|
$ 175.88 | |||||
| 2 | 3131284 | Baffle-oven Burner |
|
$ 155.77 | |||||
| 3 | 08067935 | Burner-broiler |
|
$ 142.59 | |||||
| 4 | 3131290 | Burner-oven |
|
- | |||||
| 5 | 5303131147 | Burner - Top (dble) |
|
- | |||||
| 6 | 3200277 | Bracket Burner Mtg |
|
- | |||||
| 7 | 5303131970 | Burner, Tube Front (2) |
|
- | |||||
| 8 | 5303011569 | Burner-tube-rr |
|
- | |||||
| 9 | 5303011570 | Burner-tube-lr |
|
- | |||||
| 10 | 08067945 | Ferrule |
|
- | |||||
| 11 | 3200276 | Igniter-top Burner (2) |
|
- | |||||
| 12 | 3131440 | Manifold Pipe |
|
- | |||||
| 13 | 5303017846 | Valve-top (3 Pos) |
|
$ 162.02 | |||||
| 14 | 08067948 | Elbow |
|
- | |||||
| 15 | 3131148 | Nut Compression (4) |
|
- | |||||
| 16 | 5303131580 | Ignition Switch (4) |
|
- | |||||
| 17 | 5303935068 | Igniter-broiler Burner (Replaces: 5308067970) |
|
$ 166.55 | |||||
| 18 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 19 | 5303200669 | Spark Module |
|
- | |||||
| 20 | 08067979 | Mixer-elbow |
|
- | |||||
| 21 | 3131148 | Nut |
|
- | |||||
| 23 | 5303208495 | Tube-alum 3/8-regul To Manifold |
|
- | |||||
| 24 | 5303208494 | Tube, Alum 3/8 (valve To Regulator) |
|
- | |||||
| 25 | 5303208493 | Tube-alum 3/8-valve To Mixer |
|
- | |||||
| 26 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| 27 | 5303280582 | Control-regulator |
|
- | |||||
| 28 | 08067934 | Bracket-regulator |
|
- | |||||
| 29 | 3013279 | Nut, Special |
|
$ 2.34 | |||||
| 30 | 154079601 | Nut (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 31 | 3016993 | Retainer-igniter (2) |
|
- |
