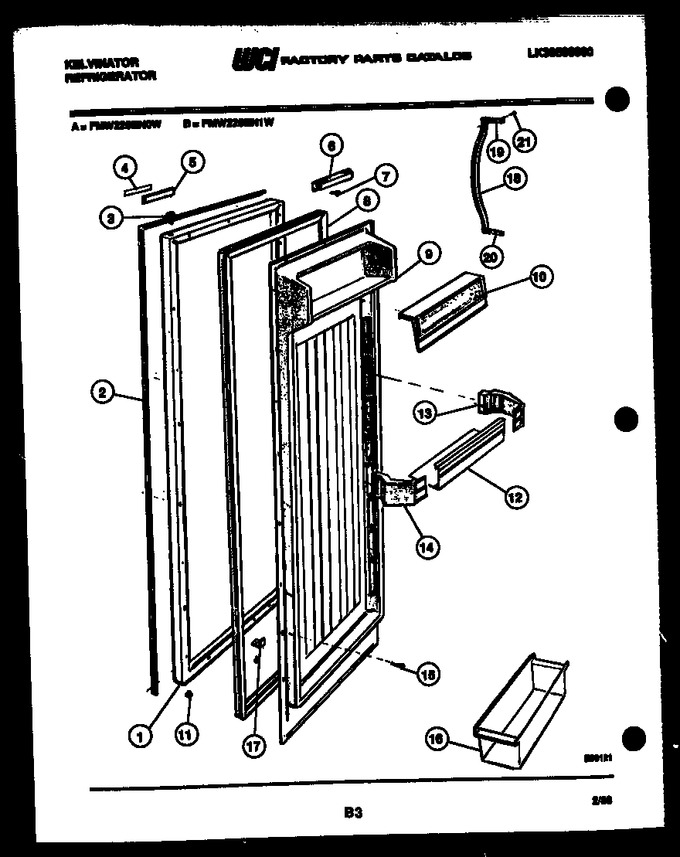

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G189946-09		Refr Door-wheat		Appelez-nous	-
2	G189468-22		Trim-refr Door		Appelez-nous	-
3	G183139		Bearing-upper Hinge		Appelez-nous	-
4	3015133		Label-nameplate		Appelez-nous	-
5	G178292		Frame Nameplate		Appelez-nous	-
6	G161119		Door Closer		Appelez-nous	-
7	G169729		Screw-closer Mtg		Appelez-nous	-
8	G180551-02		Gasket-refr Door		Appelez-nous	-
9	G3016862		Panel-inner Door		Appelez-nous	-
10	G167783-06		Dairy Door		Appelez-nous	-
11	G183138		Bearing-lower Hinge		Appelez-nous	-
12	3015078		Door Shelf (5)		Appelez-nous	-
13	G163064-01		Support Rs (5)		Appelez-nous	-
14	G163065-01		Support Ls (5)		Appelez-nous	-
15	G162585		Screw		Appelez-nous	-
16	3015068		Egg Container		Appelez-nous	-
17	G165376		Bumper - Light Switch		Appelez-nous	-
18	G189455-01		Handle Grip		Appelez-nous	-
19	G189452-01		Handle End-top		Appelez-nous	-
20	G189451-01		Handle End-bottom		Appelez-nous	-
21	G185566		Screw		Appelez-nous	-
12A	G101890		Rivet		Appelez-nous	-
12B	G167115		Screw-shelf (10) (non-illustrated)		Appelez-nous	-
17A	G162585		Screw		Appelez-nous	-
18A	G189456-03		Insert-grip (non-illustrated)		Appelez-nous	-
18B	G191430		Spacer-handle (non-illustrated)		Appelez-nous	-
18C	G172321		Screw-spacer Mtg (2) (non-illustrated)		Appelez-nous	-
18D	3016230		Anchor Nut (2) (non-illustrated)		Appelez-nous	-
1A	G152308-01		Door Plug-bottom (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
